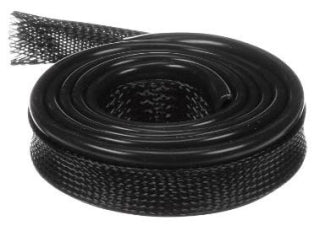

3M RJS-2-4FT Rejacketing Sleeve 4-Ft Coil

Product Description

3M RJS-2-4FT Rejacketing Sleeve is a four-foot coil designed for use with three conductor medium voltage shielded power cables. This sleeve provides safety and protection to the phase legs after the jacket has been removed. The product is made from silicone rubber and incorporates a polyester braid for added durability. It fits cable sizes with an outer diameter between zero point six and zero point eight inches.

• Suitable for medium voltage applications up to thirty-five kilovolts.
• RoHS compliant and made in the USA.
• Available in packs of ten sleeves per case.

Product Highlights

The RJS-2-4FT sleeve protects against moisture, ozone, UV radiation, and physical contact, making it suitable for harsh environments.

Product Information

Standard Information

• Brand: 3M Electrical Products
• Material: Silicone Rubber

Technical Specifications

• MPN: RJS-2-4FT
• Size: Four Foot
• Cable Insulation Outer Diameter: Zero point six to zero point eight inches
• Conductor Size: Fits conductors from fifty square millimeters to ninety-five square millimeters
• Operating Temperature: Three hundred fifty-six degrees Fahrenheit
• Ultimate Tensile Strength: One thousand fifty-eight PSI
• Wall Thickness: Zero point zero six five inches
