Product Description

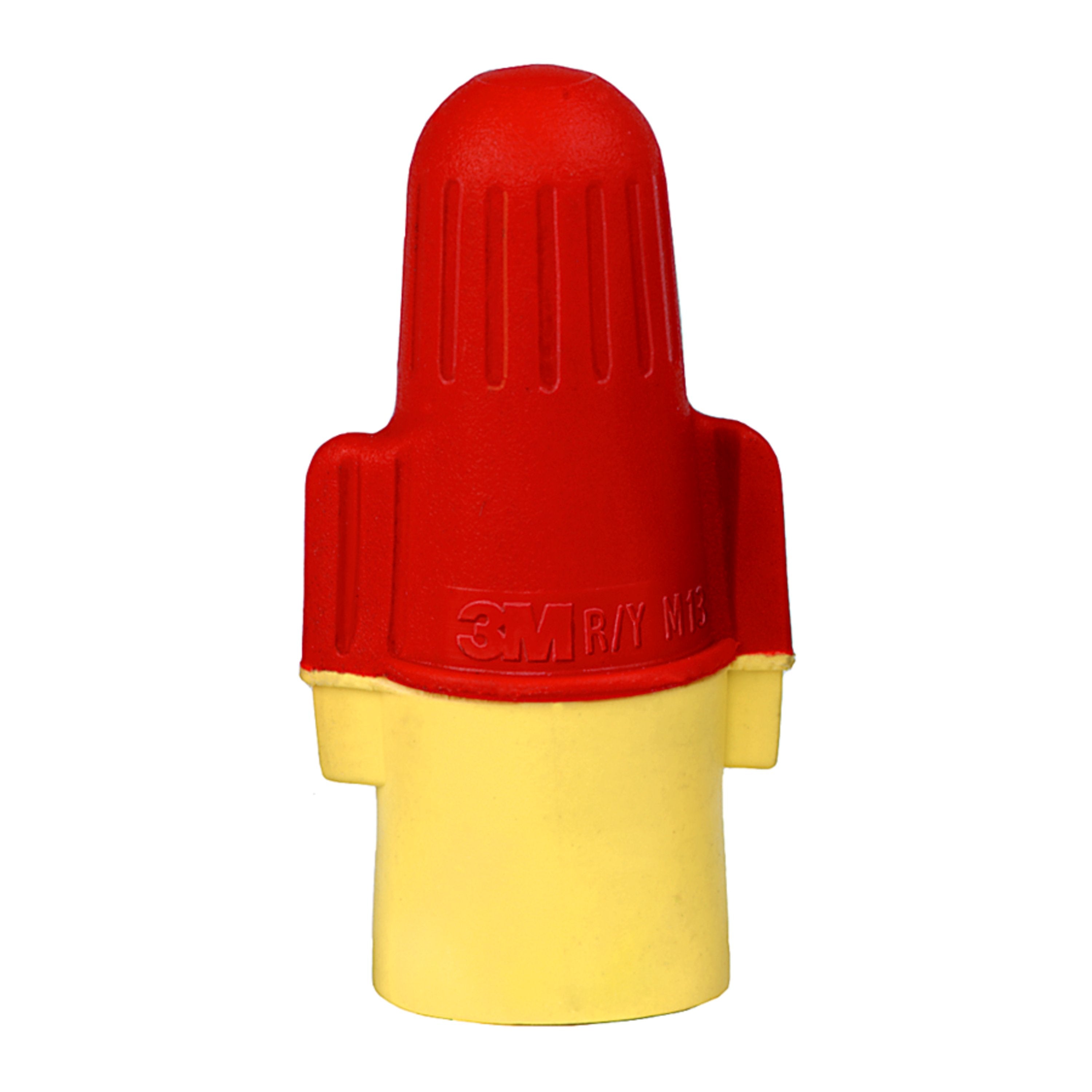

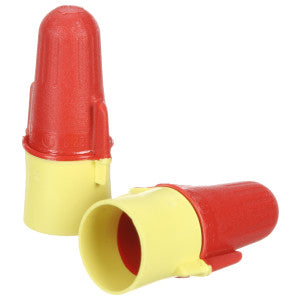

The 3M R/Y+POUCH Performance Plus Wire Connector electrically connects and insulates two or more conductor ends in a pigtail application. These flame-retardant twist-on connectors are designed for 22 to 8 AWG wires and are rated for 600 VAC. Featuring a flexible spring, they ensure a secure connection and offer an increased wire range, streamlining selection for various electrical wiring jobs.
- Electrically connects two or more conductor ends in a pigtail application.
- Insulates the connection for enhanced safety.
- Suitable for 22 to 8 AWG solid and stranded copper conductors.
Product Highlights
Connects and insulates 22 to 8 AWG wires, featuring a flexible spring for secure connections and a wider wire range.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: R/Y+POUCH
-
Country of Origin: United States
Technical Specifications
-
Color Family: Multi
-
Brand: 3M
-
MPN: R/Y+POUCH
-
Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
-
Alternate MPN: 7100127164
-
Material: Spring Steel
-
Series: Performance Plus R/Y+
-
Shell Style: Rounded Wing
-
Standards/Approvals: C22.2 #188-MI983 File No LR15503 CSA Certified|CE Certified|IEC|RoHS Compliant|UL 486C UL File No E23438 Listed
-
Temperature Rating: 221 deg F
-
Type: Flame Retardant Twist-On
-
Voltage Rating: 600 VAC
-

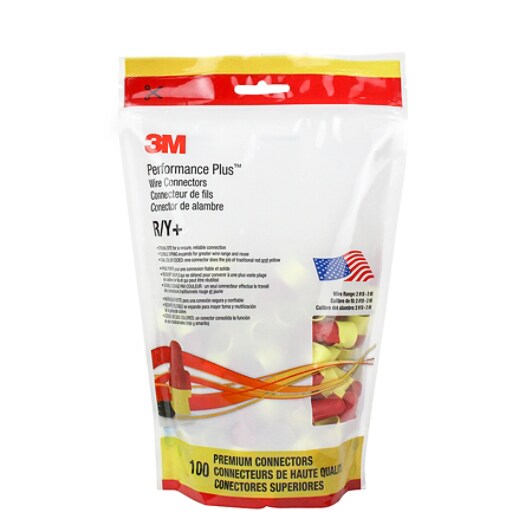

Packaging: Box of 100
-
Connection Type: Wire
-
Use With: Copper Conductor
-
Wire Range: 22 to 8 AWG solid and stranded copper conductors
-

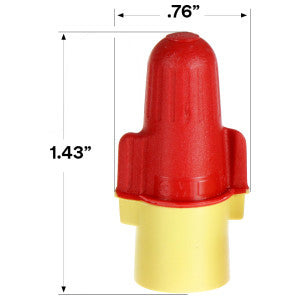

Dimensions: 0.76 IN W x 1.43 IN H
-
Wire Type: Copper
-
Category: Wire Nuts
