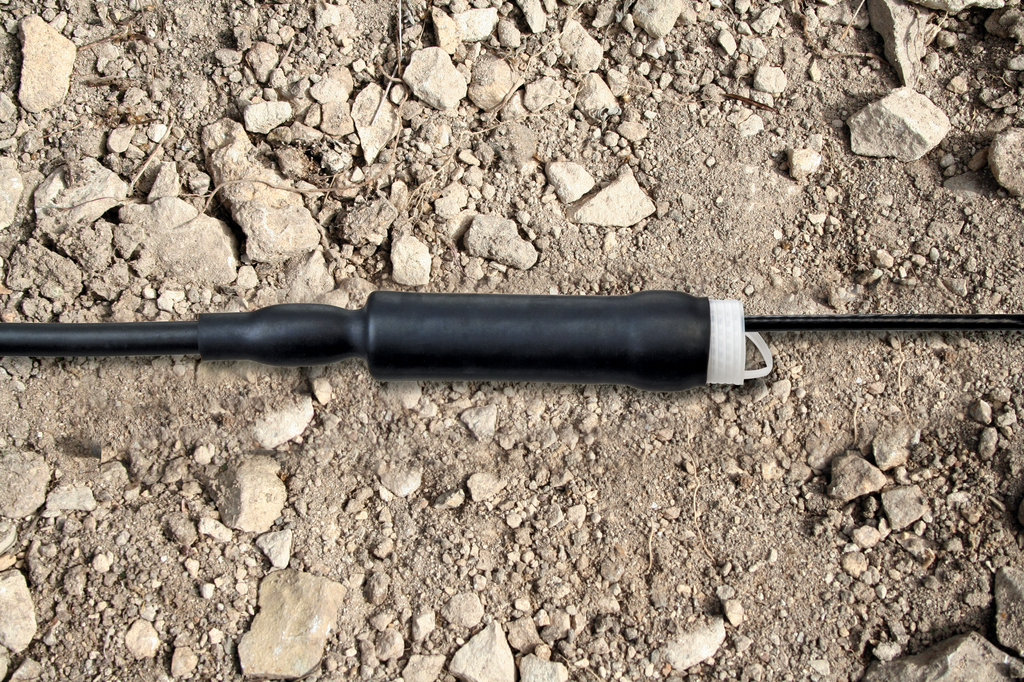

3M QSLV-M(8-2/0) Low Voltage Cold Shrink Insulators

Product Description

3M Cold Shrink Quick Splice Low Voltage QSLV-M offers reliable insulation and protection for secondary low-voltage splices. This product is designed for use with aluminum and copper conductors, fitting wire sizes from eight AWG to two-ought AWG. The mastic rings at each end create a wide wire range and provide a water-resistant seal.

• Rated for applications up to 1 kV
• RoHS compliant and ANSI certified
• Factory-expanded for easy installation

Product Highlights

This splice kit is ideal for direct-bury, secondary low-voltage, non-shielded cable splices. It is constructed with a rubber sleeve featuring sealing mastic for a durable, waterproof seal.

Product Information

Standard Information

• Brand: 3M
• MPN: QSLV-M(8-2/0)

Technical Specifications

• Voltage: 1 kV
• Conductor Size: 8 to 2/0 AWG (Aluminum), 8 to 3/0 AWG (Copper)
• Material: Aluminum
• Splice Type: Inline Splice, Cold Shrink
• Number of Conductors: 3
• Length: 2.5 inches
• ECCN: EAR99
