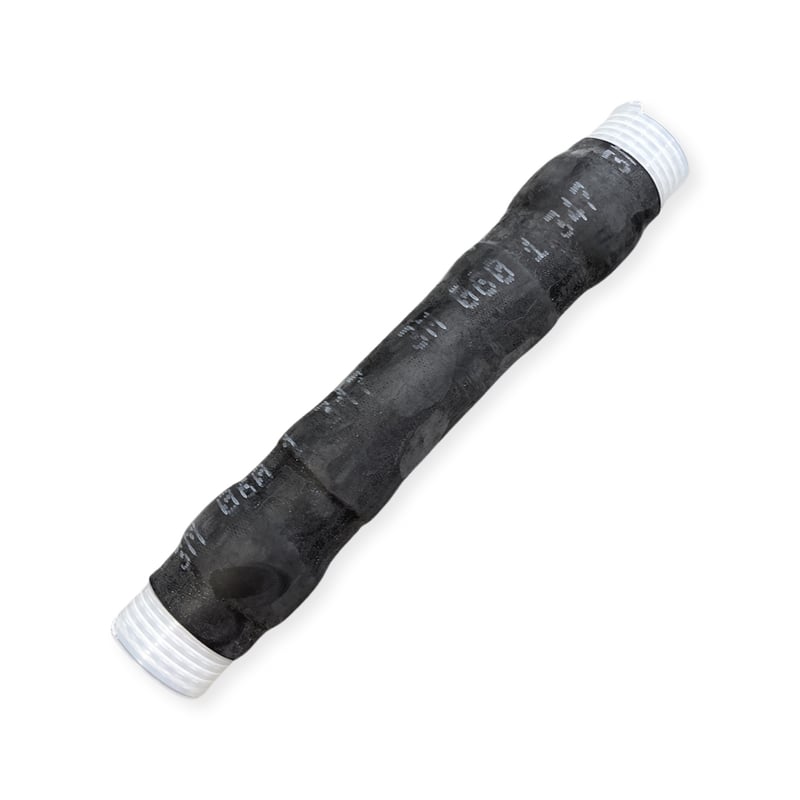

3M QSLV-M(2-500) Low Voltage Cold Shrink Insulators

Product Description

The 3M Cold Shrink Quick Splice Low Voltage insulators are designed for effective insulation and protection of low-voltage splices. The product accommodates a range from 2 AWG to 500 kcmil wire sizes. Mastic rings are included for a secure and reliable seal.

• Suitable for direct-burial and non-shielded cable splices.
• Compliant with RoHS standards and ANSI certifications.
• Compatible with both aluminum and copper conductors.

Product Highlights

This product features a rubber sleeve with sealing mastic that provides a water-resistant seal and is rated for up to 1 kV applications. Installation is simple, as it is factory-expanded for easy usage.

Product Information

Standard Information

• Brand: 3M
• MPN: QSLV-M(2-500)

Technical Specifications

• Conductor Size: 2 AWG to 500 kcmil
• Voltage Rating: 1 kV
• Material: EPDM Rubber
• Diameter: 41 mm
• Overall Length: 108 mm
• Number of Conductors: 3
• Application: Direct burial and non-shielded cable splices
