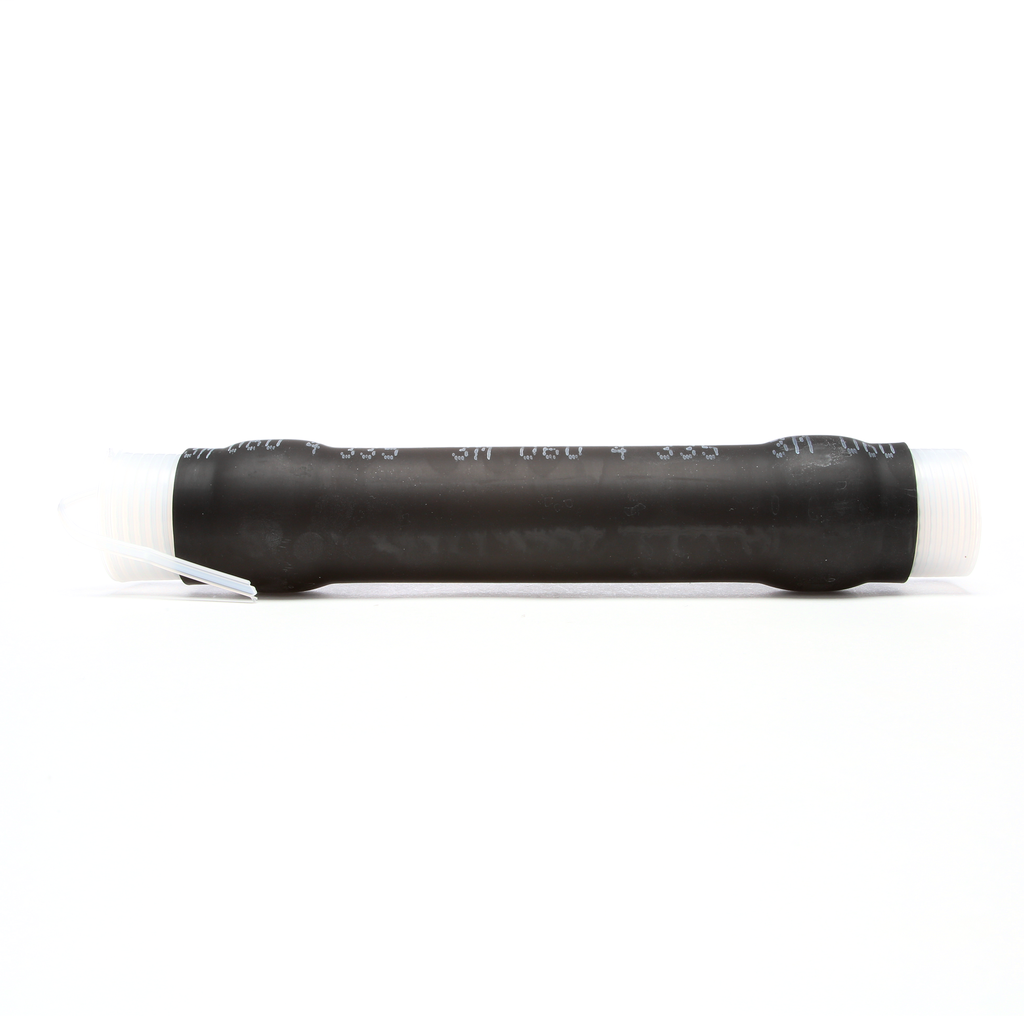

Product Description
The 3M QI-10/37-270 Cold Shrink Quick Insulator provides insulation for various cable sizes. This product features a reliable mastic environmental seal. It is compatible with Aluminum connectors from two AWG to five hundred kcmil and Copper connectors from two AWG to seven hundred fifty kcmil.
- Designed for primary insulation with a rated voltage of 1 kV
- Seals environmental factors for communication and non-electrical applications
- Constructed of EPDM rubber without chlorides or sulfur
Product Highlights
This insulator works efficiently in low-voltage applications and can handle temperatures from negative forty to one hundred ninety-four degrees Fahrenheit.
Product Information
Standard Information
-
Brand: 3M
-
Catalog Number: QI-10/37-270
Technical Specifications
-
Material: Rubber
-
Type: Splice
-
Voltage Rating: 1 kV
-
Conductor Size: 2 AWG - 750 kcmil
-
Operating Temperature: -40 to 194 degrees F
-
Indoor/Outdoor Use: Both
-
Country of Origin: USA
-
Dielectric Strength: 365 V/mil
