Product Description

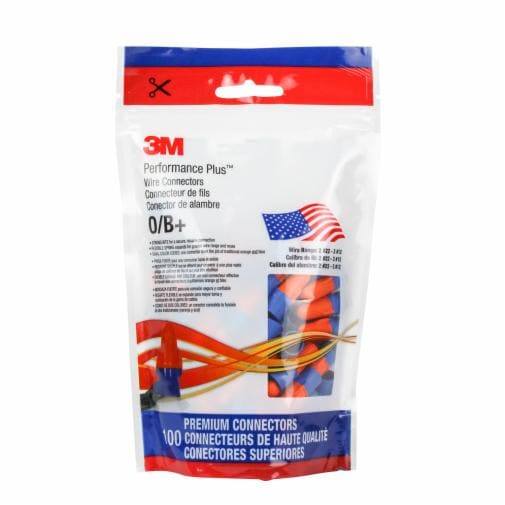

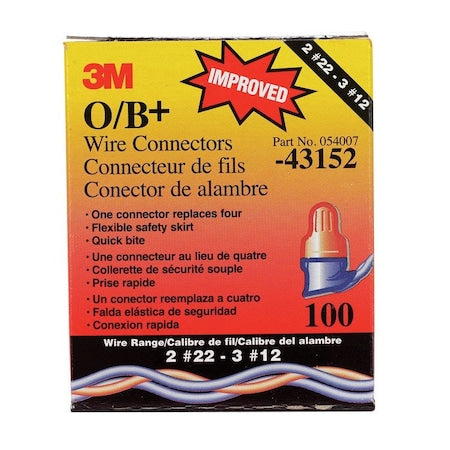

The 3M O/B Orange/Blue Wire Connector comes with 100 per box. These wire connectors feature a uniquely flexible spring that expands for greater wire range and a strong bite for a secure connection. UL Listed for 600 volts on copper wire. These connectors are ideal for electrical pigtail and wire connections.
- Strong bite for a secure, reliable connection
- Flexible spring expands for greater wire range and reuse
- Dual color coded: one connector does the job of two traditional connectors in the majority of applications
Product Highlights
The 3M O/B wire connectors offer a secure and reliable connection with a flexible spring design and dual color-coding for convenience.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: O/B
-
Country of Origin: USA
Technical Specifications
-
Country of Origin (subject to change): United States
-
Brands: 3M
-
Conductor Sizes (Imperial): 22 - 12 AWG
-
Connection Type: Wire
-
Connector Style: Twist On
-
Flame Retardant: Yes
-
Grease Filling Against Corrosion: No
-
Insulation Color: Orange/Blue
-
Insulation Material: Polypropylene & Thermoplastic Elastomer
-
Material: Plastic
-
Maximum Conductor Size (Imperial): 12 AWG
-
Maximum Conductor Size (Metric): 4 mm²
-
Maximum Insulation Outer Diameter (Metric): 3.7 mm
-
Maximum Insulation Outside Diameter: 0.145 in
-
Maximum Operating Temperature (Celsius): 105 °C
-
Maximum Operating Temperature (Fahrenheit): 221 °F
-
Maximum Recommended Voltage Rating: 600 V
-
Maximum Voltage Rating: 600 V
-
Minimum Conductor Size (Imperial): 22 AWG
-
Minimum Conductor Size (Metric): .34 mm²
-
Product Color: Orange, Blue
-
Product Type: Connector
-
Specifications Met: CSA, UL Listed
-
Voltage Rating: 600 V
-
Wire Connector Type: Twist-on Wire Connectors
