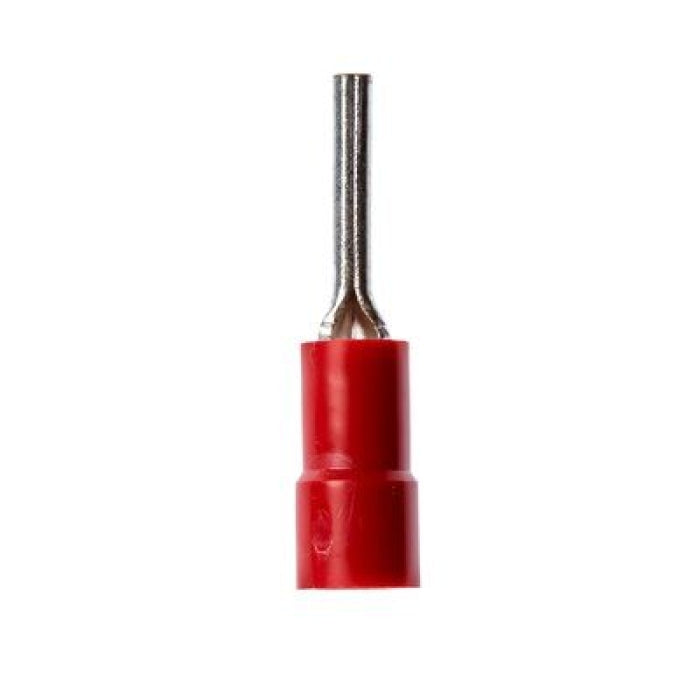

3M MVU18-47PX-A Scotchlok Pin Terminal 22 to 18 AWG 0.075 in Diameter

Product Description

The 3M Scotchlok Pin Terminal MVU18-47PX-A is designed for various wiring applications. It features a butted-seam barrel and is suitable for conductors ranging from twenty-two to eighteen AWG. This terminal includes a funnel-shaped rigid polyvinyl chloride sleeve, which aids in positioning the wire accurately while also providing electrical contact and mechanical support.

• Color coded for quick wire size identification.
• Provides mechanical stress relief and easy crimping.
• Rated for up to one thousand volts for safe electrical connections.

Product Highlights

Utilized for secure wire connections, making it ideal for electricians and electrical professionals.

Product Information

Standard Information

• Brand: 3M
• Part Number: 3MI-7100054896

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Pin Diameter: 0.075 inches
• Pin Length: 0.47 inches
• Overall Length: 0.9 inches
• Material: Copper/Vinyl
• Voltage Rating: 600 to 1000 VAC
• Temperature Rating: 167 degrees Fahrenheit
• Barrel Type: Butted Seam Barrel
• Specifications: 0.15 inches OD Barrel
