3M MVU18-10FX TERMINALS
3M 3M MVU18-10FX Insulated Standard Fork Terminal 22 to 18 AWG Conductor
3M 3M MVU18-10FX Insulated Standard Fork Terminal 22 to 18 AWG Conductor
3M MVU18-10FX TERMINALS
3M MVU18-10FX Insulated Standard Fork Terminal 22 to 18 AWG Conductor
3M MVU18-10FX Insulated Standard Fork Terminal 22 to 18 AWG Conductor

3M MVU18-10FX Insulated Standard Fork Terminal 22 to 18 AWG Conductor

3M
Brand: 3M
SKU: MVU18-10FX
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

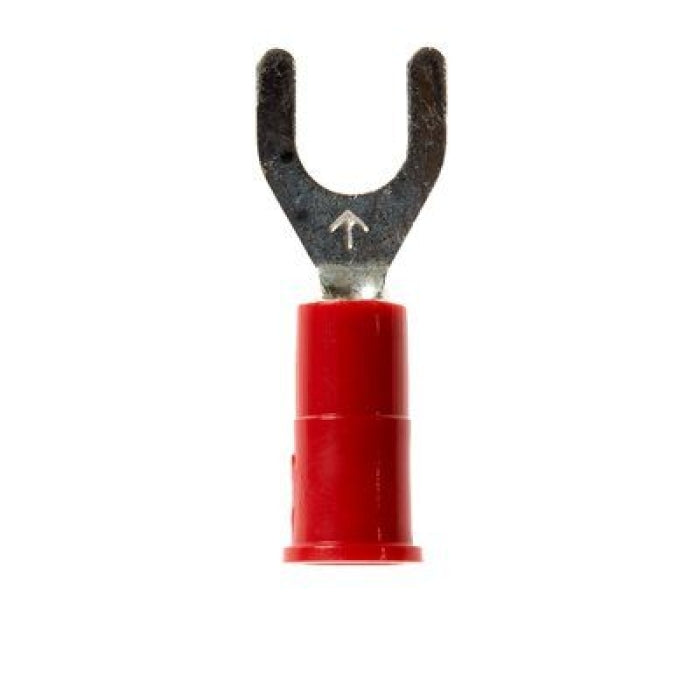

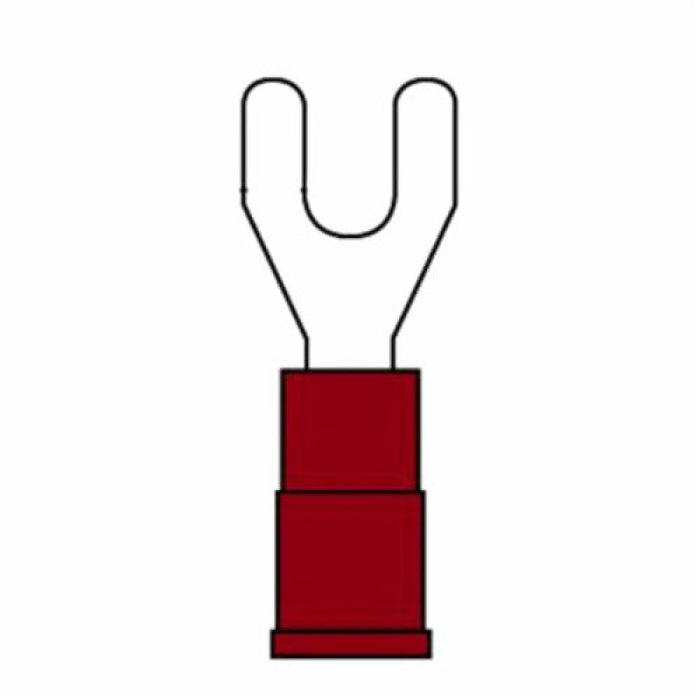

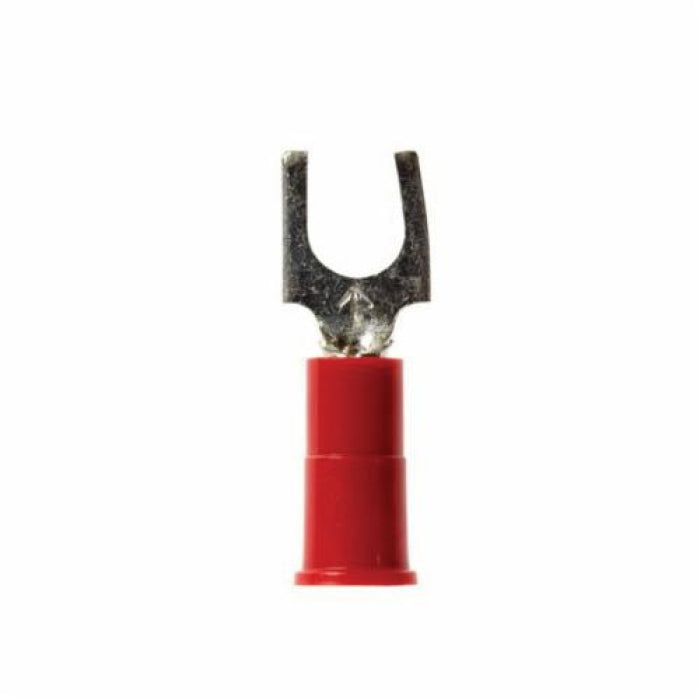

The 3M MVU18-10FX is an insulated standard fork terminal designed for use with conductors ranging from twenty-two to eighteen AWG. This terminal features a butted seam barrel, crafted from electrolytic copper for optimal conductivity. With a length of 0.9 inches, it is suitable for connection to #10 stud mounts. It can handle voltage ratings of six hundred to one thousand VAC and operates effectively within a temperature range of negative forty to two hundred twenty-one degrees Fahrenheit.

  • Insulated for safety
  • Designed for easy crimp connection
  • Electrolytic copper construction

Product Highlights

This fork terminal supports quick wire connections and can be used primarily on free-standing studs, enhancing installation efficiency.

Product Information

Standard Information

  • Brand: 3M
  • Part Number: MVU18-10FX
Technical Specifications
Conductor Size
22 to 18 AWG
Length
0.9 inches
Barrel Type
Butted seam
Voltage Rating
600 to 1000 VAC
Temperature Range
-40 to 221 °F
Barrel ID
0.07 inches
Barrel Length
0.25 inches
Width
0.34 inches
