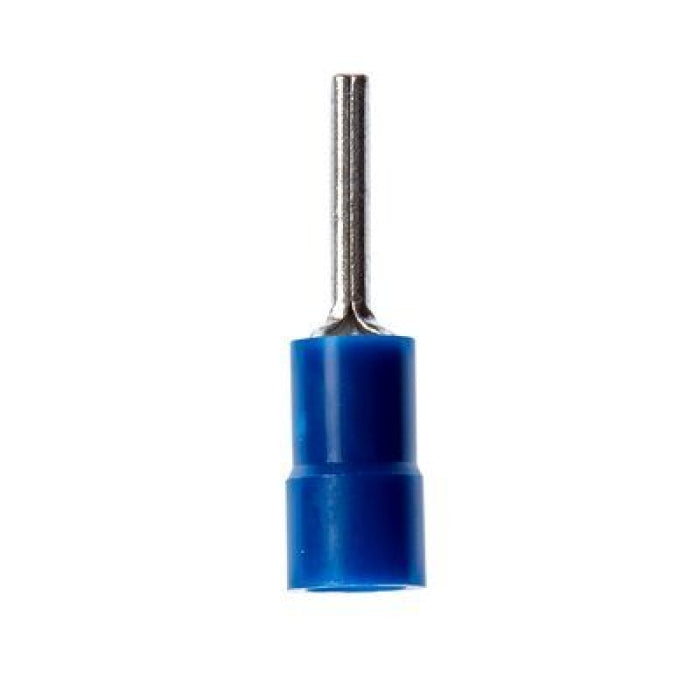

3M MVU14-47PX-A Butted Seam Barrel Pin Terminal 16 to 14 AWG

Product Description

The 3M MVU14-47PX-A is a butted seam barrel pin terminal designed for use with 16 to 14 AWG conductors. This component features a color-coded design for easy wire size identification. It includes a funnel-shaped rigid-molded polyvinyl chloride sleeve that positions the wire and ensures reliable electrical contact while providing mechanical stress relief.

• Color-coded for quick identification
• Made of copper and vinyl for durability
• Rated for both building wire and signage applications

Product Highlights

This pin terminal offers a reliable and efficient connection for various electrical applications.

Product Information

Standard Information

• Brand: 3M
• MPN: MVU14-47PX-A

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Pin Diameter: 0.47 inches
• Pin Length: 0.075 inches
• Overall Length: 0.9 inches
• Material: Copper/Vinyl
• Voltage Rating: 600 to 1000 VAC
• Temperature Rating: 167 degrees F
• Specifications: 0.17 inches OD barrel
