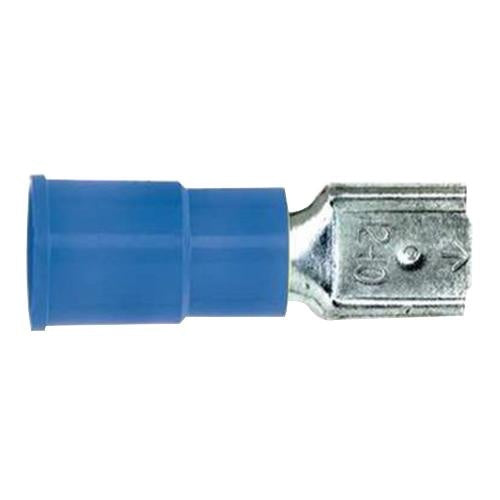

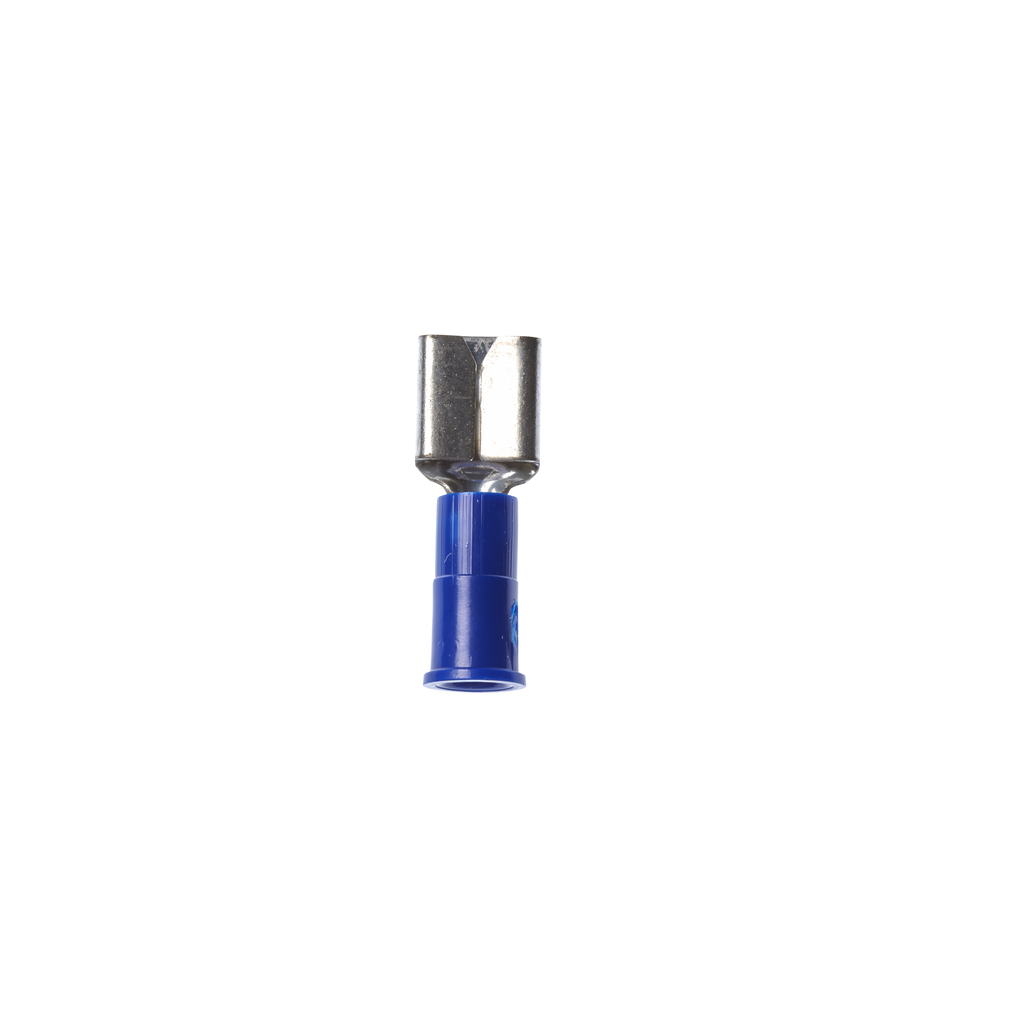

3M MVU14-250DFX Scotchlok Butted Vinyl Quick-Disconnect Terminal (Case)

Product Description

The 3M MVU14-250DFX is a vinyl-insulated quick-disconnect female terminal with a butted-seam barrel designed for crimp termination. It measures 0.87 in overall length with a 0.08 in barrel inner diameter and accepts 16 to 14 AWG conductors. The terminal features a PVC insulating sleeve, tin-plated brass contact material, UL and CSA recognition, a voltage rating suitable for 600 V (building wire) and higher applications, and a temperature range of -40 to 105 deg C.

• Butted-seam crimp barrel with 0.08 in inner diameter and 0.25 in barrel length for 16-14 AWG conductors
• Vinyl (PVC) insulated sleeve with funnel design for guided wire insertion; tin-plated brass contact
• Rated to -40 to 105 deg C, UL listed and CSA certified; voltage rating suitable for 600 V (with higher ratings noted for specific applications)

Product Highlights

Vinyl-insulated, butted-seam female quick-disconnect for 16-14 AWG; tin-plated brass contact; UL and CSA recognized; 0.87 in overall length.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: MVU14-250DFX
• Country of Origin: United States of America
