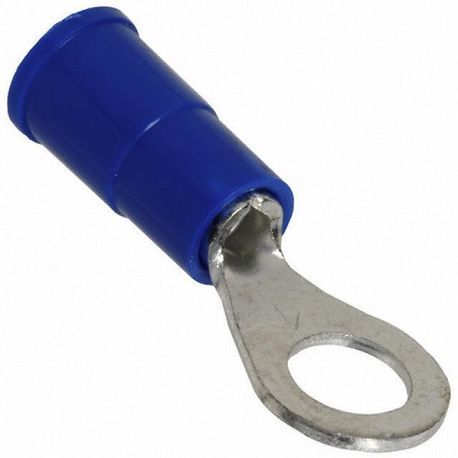

3M MVU14-10RX Scotchlok Ring Terminal 16 to 14 AWG

Product Description

The 3M MVU14-10RX Scotchlok Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. Designed for 16 to 14 AWG conductors, it features a butted-seam barrel. The electrolytic copper construction offers good conductivity, and a tin-plated finish resists corrosion.

• Insulated standard ring terminal
• 16 to 14 AWG Conductor
• 0.9 in L
• Butted Seam Barrel

Product Highlights

The 3M Scotchlok MVU14-10RX ring terminal provides a secure fit and reliable performance for electrical connections, featuring a vinyl-insulated barrel and corrosion-resistant construction.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: MVU14-10RX

Technical Specifications

• Brand: 3M
• MPN: MVU14-10RX
• Type: Ring
• Standard: UL and CSA
• Stud Size: 10
• Width (W): 0.33 Inch
• Barrel Style: Butted
• Manufacturer: 3M
• Clearance (C): 0.29 Inch
• Special Features: Standard
• Insulation Material: Vinyl
• Maximum Conductor Size: 14 AWG
• Maximum Operating Temperature: 221 degrees F
• Minimum Conductor Size: 16 AWG
• Minimum Stud Diameter: 5 mm
• Overall Length: 0.9 in
• Overall Width: 0.33 in
• Terminal Type: Ring
