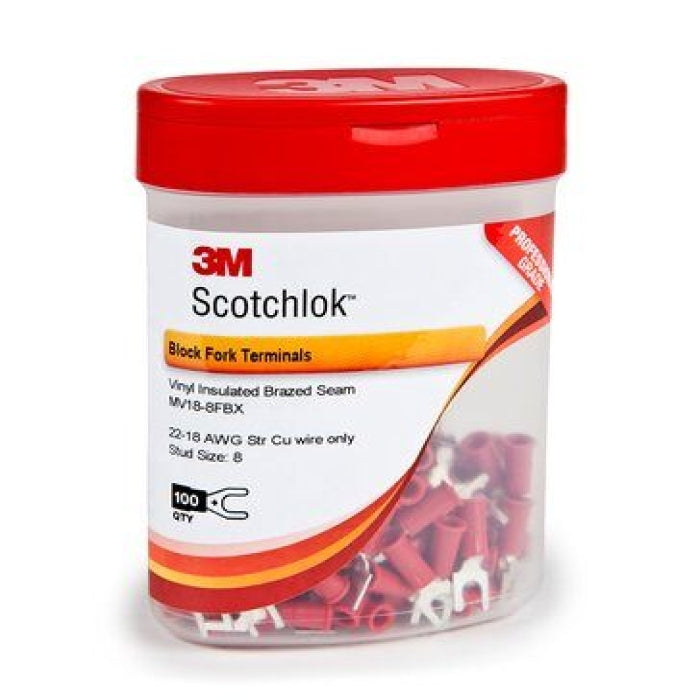

3M MV18-8FBX block fork insulated terminal (22-18 AWG / #8 stud / 0.85 in length)

3M
Brand: 3M
SKU: MV18-8FBX
Availability: In Stock

Ships same day if ordered by 12 pm
$128.76
$128.76
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

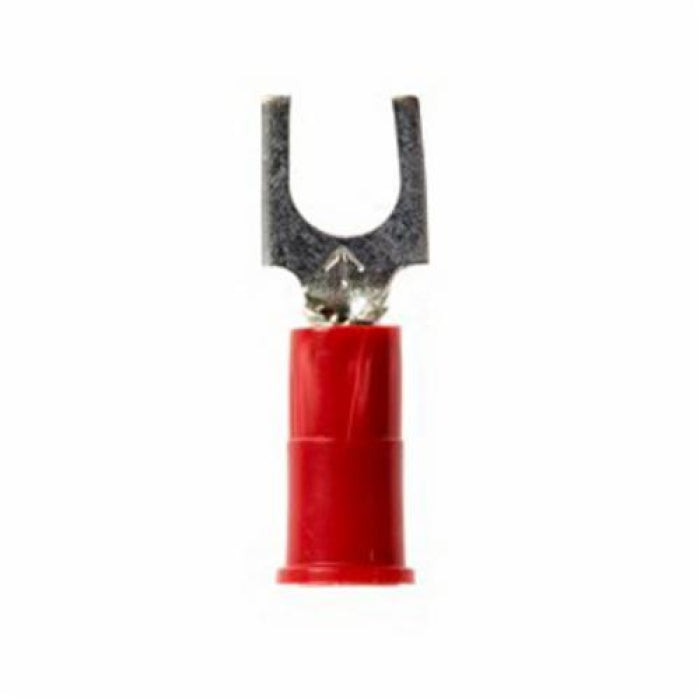

The 3M MV18-8FBX is a vinyl-insulated block fork terminal designed for 22 to 18 AWG stranded conductors and a #8 stud. It uses a brazed-seam barrel covered by a funnel-designed rigid PVC sleeve to guide wire insertion and relieve mechanical stress at the insulation point. The terminal is made of electrolytic copper with a tin-plated finish, rated 600 to 1000 VAC and -40 to 221 �F.

  • Brazed-seam barrel with funnel-shaped PVC sleeve for guided wire insertion and mechanical strain relief
  • Electrolytic copper conductor with tin-plated finish; compatible with 22�18 AWG stranded wire and #8 stud
  • Electrical rating 600 to 1000 VAC; temperature range -40 to 221 �F; overall length 0.85 in

Product Highlights

Vinyl-insulated fork terminal with brazed-seam barrel, tin-plated copper construction, and ratings for 600�1000 VAC at -40 to 221 �F

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: MV18-8FBX
  • Country of Origin: United States
Technical Specifications
Brand
3M
Manufacturer Part Number
MV18-8FBX
Alternate Part Number
7000133323
Series
Scotchlok
Connector Type
Fork
Terminal Type
Block insulated fork terminal
Conductor Size
22 to 18 AWG
Conductor Type
Stranded copper
Stud Size
#8
Overall Length
0.85 in
Barrel ID x Length
0.07 in ID x 0.25 in L
Barrel Type
Brazed seam barrel
Tongue Type
Fork
Tongue Width
0.3 in
Tongue Thickness
0.03 in
Insulation Material
Rigid molded polyvinyl chloride (vinyl)
Max Insulation Diameter
0.145 in
Clearance
1/4 in
Voltage Rating
600 to 1000 VAC
Temperature Range
-40 to 221 �F
Material
Electrolytic copper / Vinyl
Finish
Tin plated
Approvals
UL recognized; CSA certified; RoHS compliant
Country of Origin
US
Unit of Measure
EA
Standard Package Quantity
100
