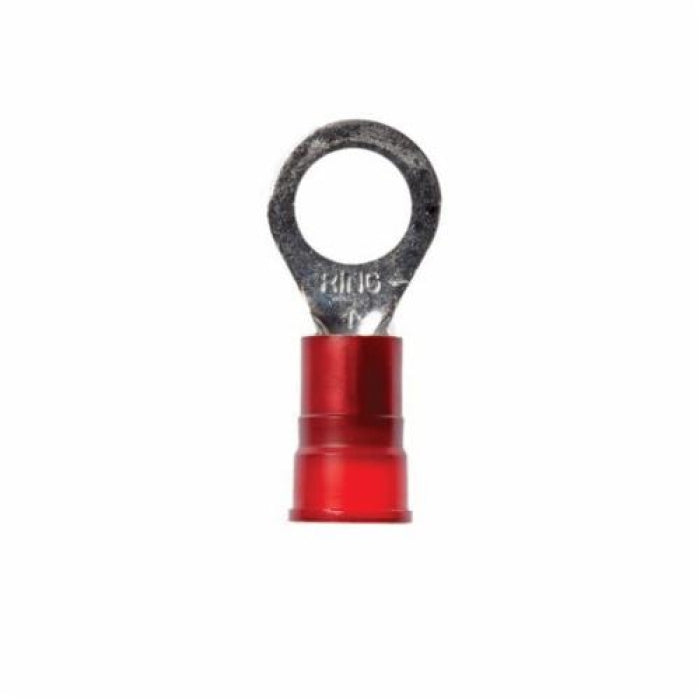

3M MV18-6R/SX CABLE TERMINALS
3M 3M MV18-6R/SX Standard Ring Tongue Terminal 22 to 18 AWG Conductor Replacement MPN
3M 3M MV18-6R/SX Standard Ring Tongue Terminal 22 to 18 AWG Conductor Replacement MPN
3M MV18-6R/SX CABLE TERMINALS
3M MV18-6R/SX Standard Ring Tongue Terminal 22 to 18 AWG Conductor Replacement MPN
3M MV18-6R/SX Standard Ring Tongue Terminal 22 to 18 AWG Conductor Replacement MPN

3M MV18-6R/SX Standard Ring Tongue Terminal 22 to 18 AWG Conductor Replacement MPN

3M
Brand: 3M
SKU: MV18-6R/SX
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

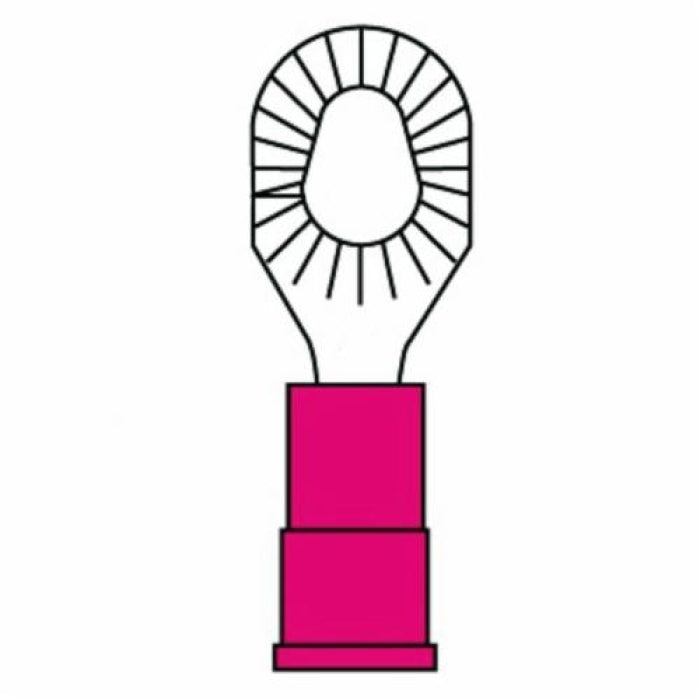

3M MV18-6R/SX is a standard ring tongue terminal designed for use with conductors from twenty-two to eighteen AWG. This terminal features a brazed seam barrel and is constructed with electrolytic copper to ensure good conductivity. It is insulated with vinyl to provide safety and reliability in electrical applications.

  • Vinyl insulated for protection against electrical hazards.
  • Can withstand temperatures from minus forty to two hundred twenty-one degrees Fahrenheit.
  • Standard-style ring tongue securely fits around a #6 stud.

Product Highlights

This terminal is suitable for various applications, including wiring fixtures and connections in electrical installations.

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer: 3M
Technical Specifications
MPN
MV18-6R/SX
Conductor Size
22 to 18 AWG
Barrel Type
Brazed
Voltage Rating
600/1000 VAC

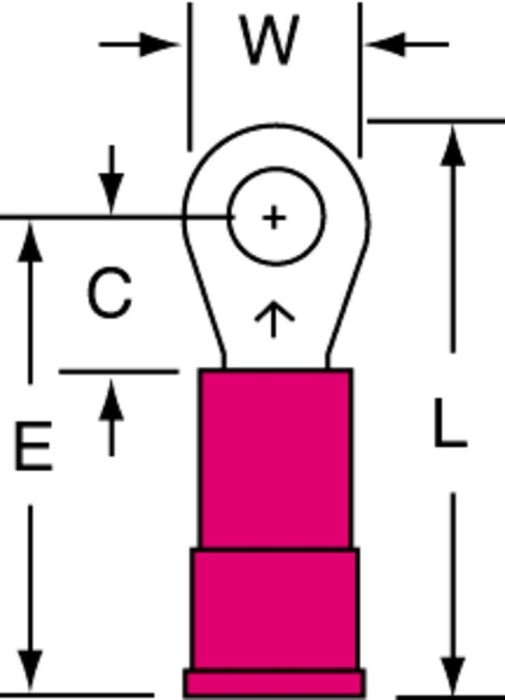

Length
0.8 inches
ID Diameter
0.07 inches
Stud Size
#6
Temperature Rating
-40 to 221 degrees Fahrenheit
Insulation Material
Vinyl
Finish
Tin Plated
