Product Description

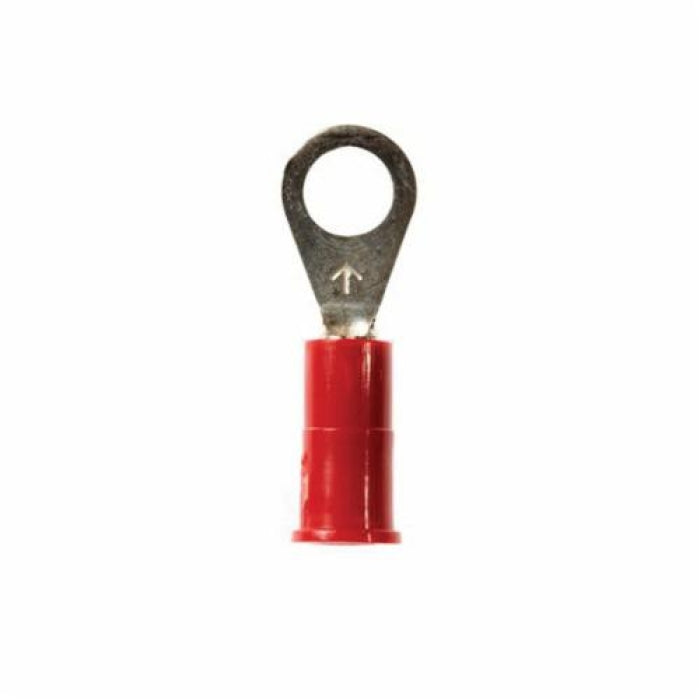

The 3M Scotchlok Insulated Standard Ring Terminal, MPN MV18-10R/LX, is designed for reliable electrical connections. This terminal accommodates wire sizes from twenty-two to eighteen AWG. It features a brazed seam barrel and a color-coded design for easy identification.
- Compatible with #10 studs
- Temperature range of negative forty to two hundred twenty-one degrees Fahrenheit
- Vinyl insulation for improved durability
Product Highlights
This product is engineered for effective wire termination and ensures a secure connection.
Product Information
Standard Information
-
Brand: 3M
-
MPN: MV18-10R/LX
Technical Specifications
-
Material: Copper
-
Insulation Material: Vinyl
-

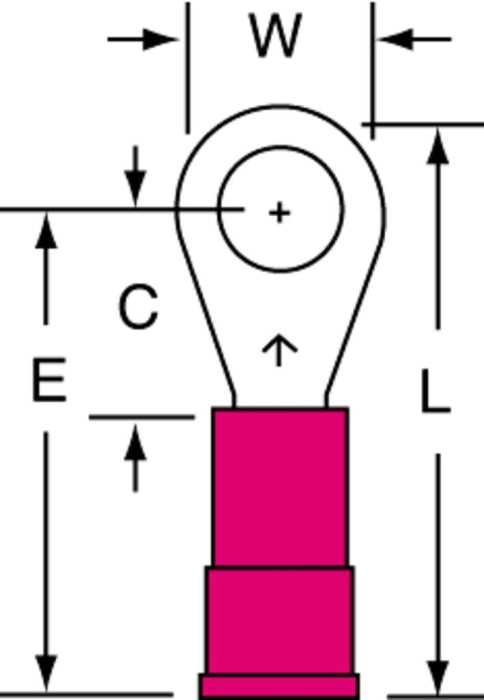

Length: 0.93 inches
-
Width: 0.31 inches
-
Barrel Type: Brazed Seam
-
Voltage Rating: 600/1000 VAC
-
Conductor Size: 22 to 18 AWG
-
Temperature Rating: -40 to 221 degrees Fahrenheit
