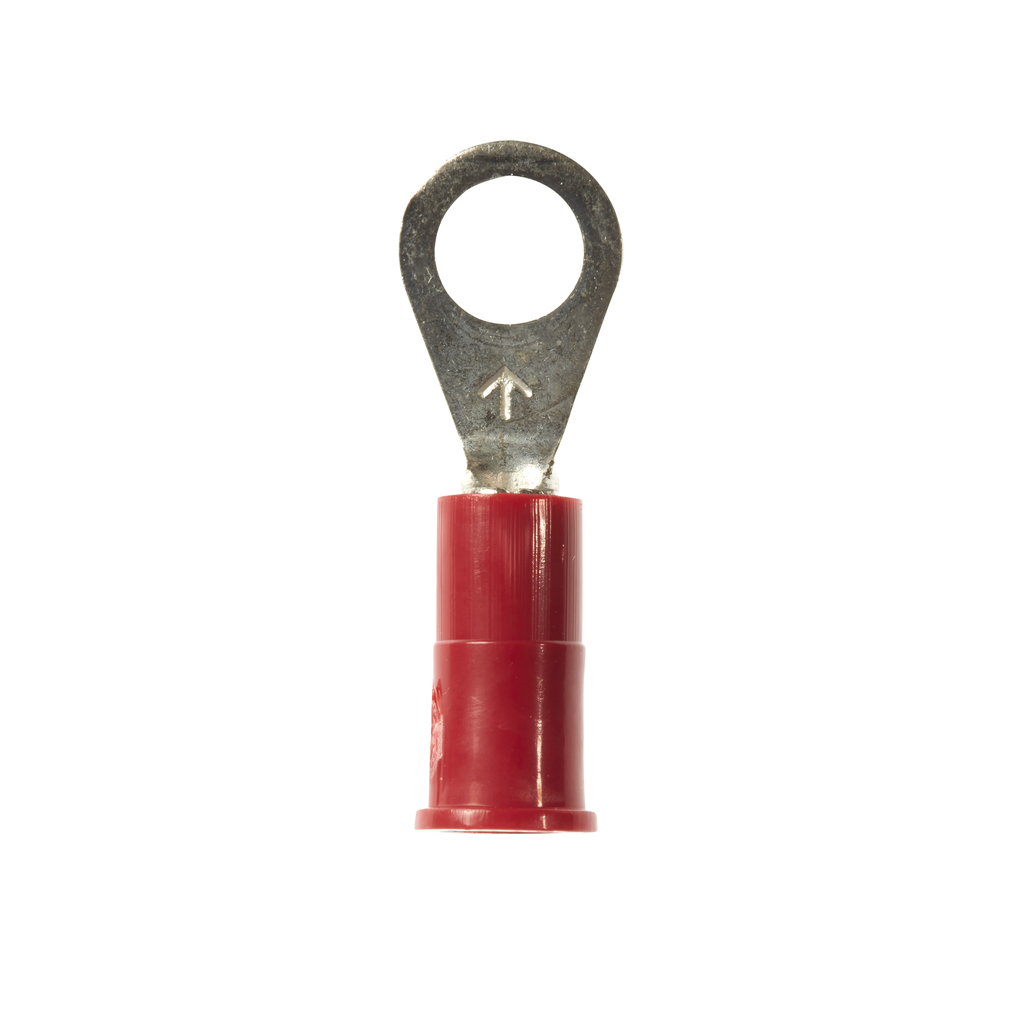

3M 3M MV18-10R/LX ring vinyl insulated 100/bottle
3M 3M MV18-10R/LX ring vinyl insulated 100/bottle

3M MV18-10R/LX ring vinyl insulated 100/bottle

3M
Brand: 3M
SKU: MV18-10R/LX
Availability: Out Of Stock
$90.75
$90.75
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The 3M MV18-10R/LX Scotchlok Color-Coded Large Ring Tongue Terminal ensures an ideal fit with reliable performance. It features a vinyl-insulated, brazed-seam barrel and withstands temperatures from -40 to 105 degrees C. The electrolytic copper construction offers good conductivity, and the tin-plated finish resists corrosion. Accommodates wire sizes 22 to 18 AWG.

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 105 degrees C

Product Highlights

The 3M Scotchlok MV18-10R/LX ring tongue terminal provides a secure and corrosion-resistant connection for various electrical applications.

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: MV18-10R/LX
  • Country of Origin: USA
Technical Specifications
Type
Standard
Brand
3M
Width
0.31 in
Finish
Tin Plated
Length
0.93 Inch
Voltage
600 Volt
Material
Copper
Stud Size
#10
Sub Brand
Scotchlok™
Barrel Type
Brazed Seam
Barrel Length
0.45 in
Terminal Size
22 - 18 AWG
Conductor Size
22-18 AWG
Overall Length
0.93 in
Barrel Diameter
0.07 in ID
Temperature Rating
-40 to 105 degrees C
Insulation Material
Vinyl
Max Operating Temperature
105 C
Connection Width (Imperial)
0.19 in
Connection Width (Metric)
4.826 mm
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
0.823 mm²
Maximum Operating Temperature (Celsius)
105 ℃
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
0.326 mm²
Terminal Type
Ring
Overall Length (Metric)
23.62 mm
Overall Width (Metric)
7.87 mm
Standard
UL and CSA
Manufacturer
3M
Special Features
Standard
