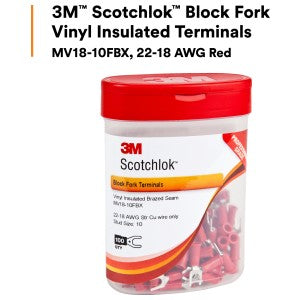

3M MV18-10FBX Scotchlok Block Insulated Fork Terminal 22 to 18 AWG

Product Description

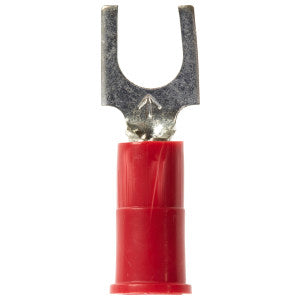

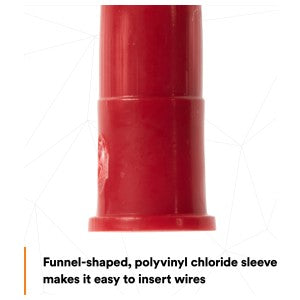

The 3M Scotchlok MV18-10FBX is a block insulated fork terminal designed for use with 22 to 18 AWG conductors. This terminal features a color-coded design for quick identification of wire size and a brazed seam barrel that ensures reliable electrical connections. The funnel-shaped, rigid molded PVC sleeve guides the wire into position and provides stress relief at the point of insulation.

• Accommodates wire sizes from 22 to 18 AWG.
• Withstands temperatures ranging from -40 to 105 degrees Celsius.
• Rated for 600 volts for building wiring and 1000 volts for signs and fixtures.

Product Highlights

This fork terminal is ideal for various applications, ensuring a secure fit and excellent conductivity thanks to its electrolytic copper construction and tin-plated finish.

Product Information

Standard Information

• Brand: 3M
• MPN: MV18-10FBX

Technical Specifications

• Material: Electrolytic Copper
• Insulation Material: Vinyl
• Barrel Type: Brazed Seam
• Barrel Length: 0.25 inches
• Dimensions: 0.85 inches length
• Voltage Rating: 600 V Building Wiring, 1000 V Signs/Fixture
• Temperature Rating: -40 to 105 degrees Celsius
• Tang Size: 0.3 inches width x 0.03 inches thickness
• Stud Size: #10
• Conductor Size: 22 to 18 AWG
