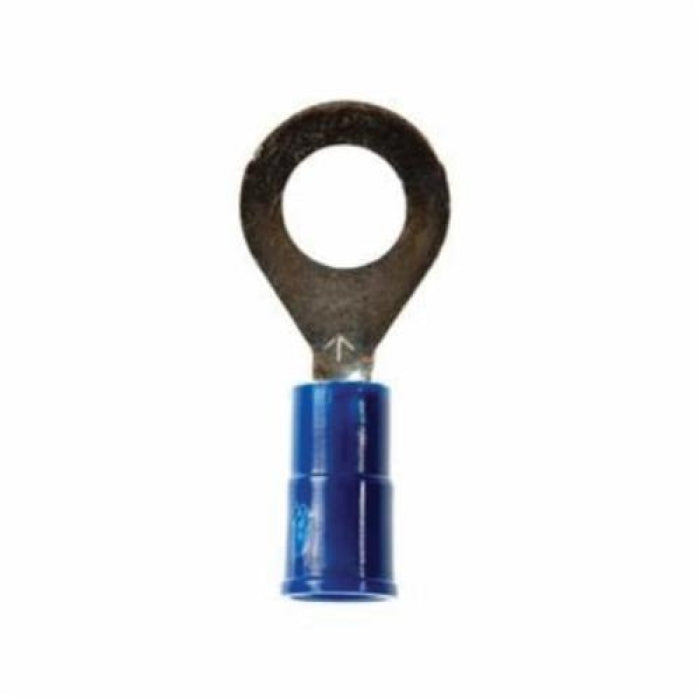

3M MV14-8R/LX Scotchlok Insulated Standard Ring Terminal 16 to 14 AWG Conductor 0.93 in Length

Product Description

The 3M Scotchlok MV14-8R/LX is an insulated standard ring terminal designed for conductors ranging from sixteen to fourteen AWG. Its length is zero point ninety-three inches. The terminal includes a reliable brazed seam barrel, which provides a secure connection for electrical applications.

• Insulated to enhance electrical safety
• Compatible with #8 studs for versatile installations
• Temperature rated from -40 to 221 degrees Fahrenheit

Product Highlights

Use this product for building fixtures, luminaires, or anywhere secure electrical connections are necessary.

Product Information

Standard Information

• Brand: 3M
• MPN: MV14-8R/LX

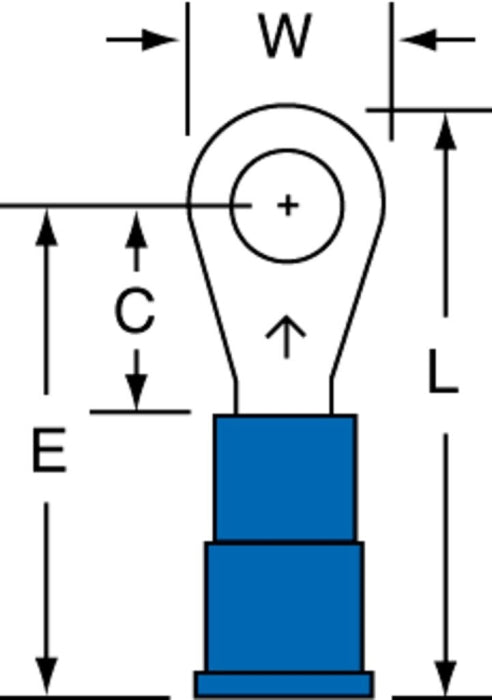

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Length: 0.93 inches
• Barrel Size: 0.09 inches ID x 0.25 inches L
• Voltage Rating: 600/1000 VAC
• Material: Copper with tin plating
• Stud Size: #8
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Specifications: 0.17 inches diameter maximum insulation, 0.33 inches clearance
