Product Description

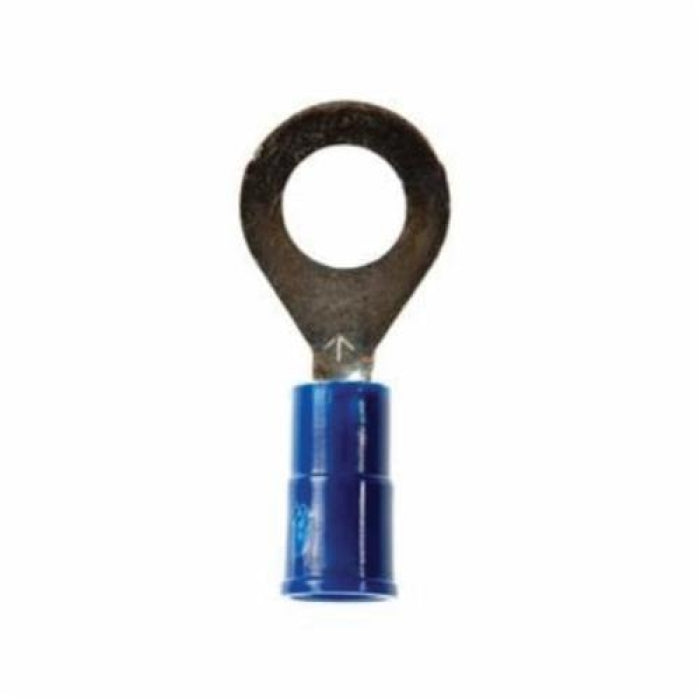

3M MV14-14R/SX Scotchlok Insulated Standard Ring Terminal is made for 16 to 14 AWG conductors. It features a brazed seam barrel and a reliable blue vinyl insulation.
- Insulated for safety and reliable connection
- Compatible with standard 1/4 inch studs
- Ideal for high voltage applications up to 1000 VAC
Product Highlights
This terminal offers secure wire connections in various electrical systems.
Product Information
Standard Information
-
Brand: 3M
-
MPN: MV14-14R/SX
Technical Specifications
-
Conductor Size: 16 to 14 AWG
-
Insulation Type: Vinyl
-
Length: 1.08 inches
-
Width: 0.47 inches
-
Thickness: 0.03 inches
-
Temperature Rating: -40 to 221 degrees F
-
Voltage Rating: 600/1000 VAC
-
Color: Blue
