Product Description

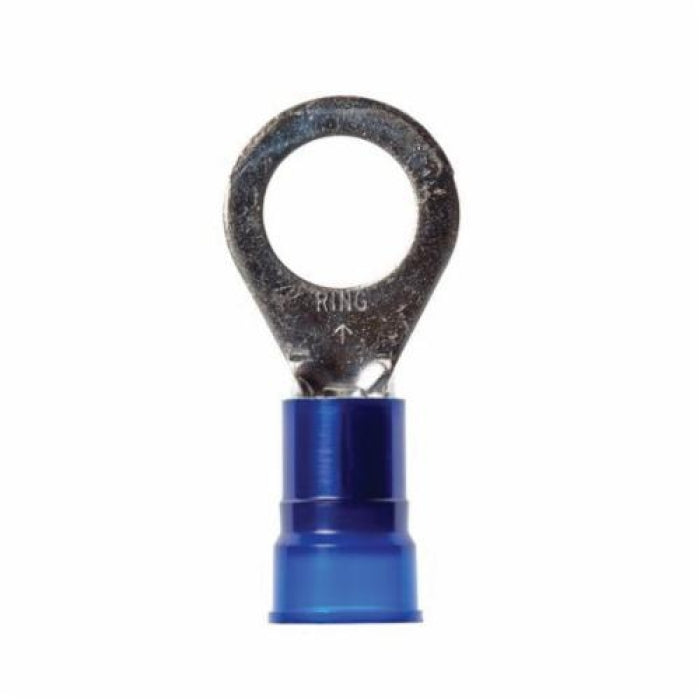

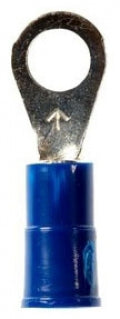

3M MV14-10R/LK is a standard ring tongue terminal designed for use with 16 to 14 AWG conductors. It features a brazed seam barrel and is constructed of electrolytic tough pitch (ETP) copper. This terminal can handle a temperature range of -40 to 221 degrees Fahrenheit. The terminal has a blue vinyl insulation which provides enhanced safety and reliability.
- Fits around #10 stud.
- Insulation type: Vinyl.
- Rated for voltage between 600 to 1000 VAC.
Product Highlights
Standard ring tongue terminal for secure electrical connections with versatility in applications.
Product Information
Standard Information
-
Brand: 3M
-
MPN: MV14-10R/LK
Technical Specifications
-
Conductor Size: 16 to 14 AWG
-
Length: 0.93 inches
-
ID Size: 0.09 inches
-
Barrel Length: 0.25 inches
-
Width: 0.31 inches
-
Thickness: 0.03 inches
-
Stud Size: #10
-
Voltage Rating: 600 to 1000 VAC
