3M MV10-516R/SX Scotchlok small ring tongue terminal insulated 5/16 stud 500/case straight 7000133339

Product Description

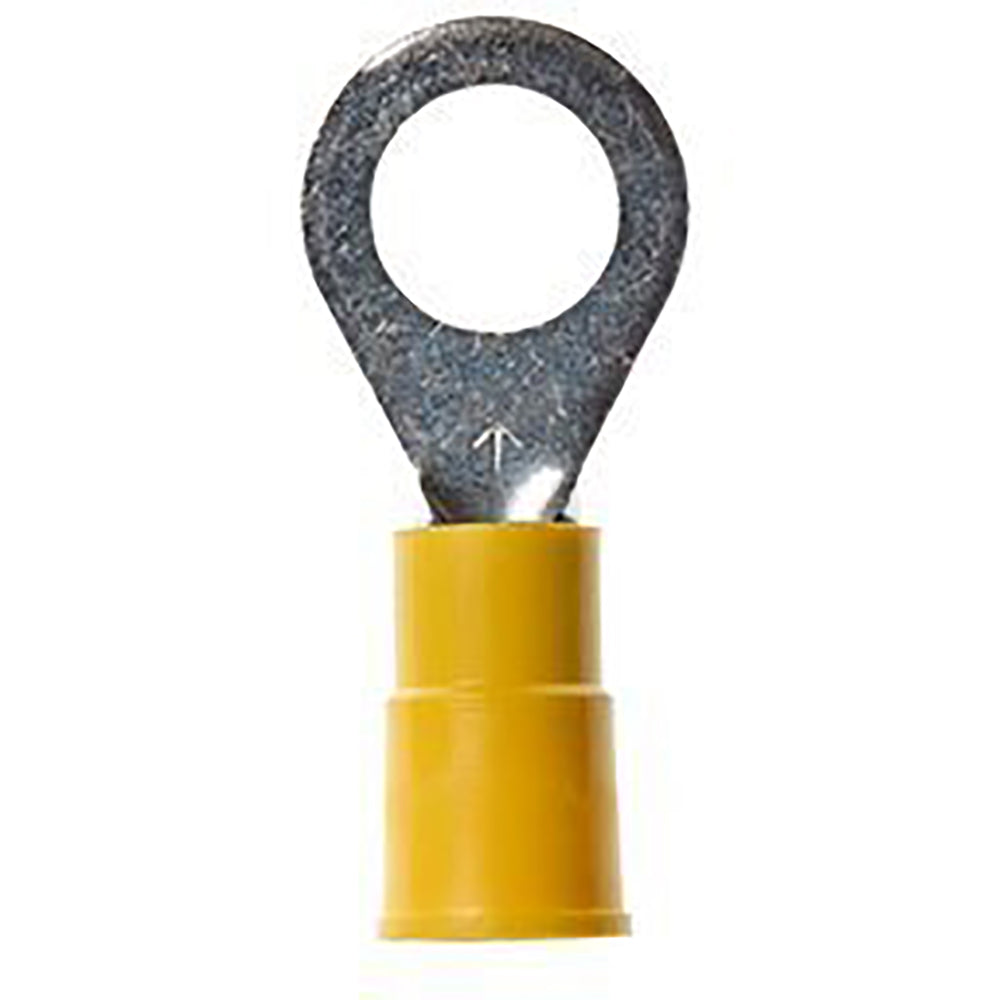

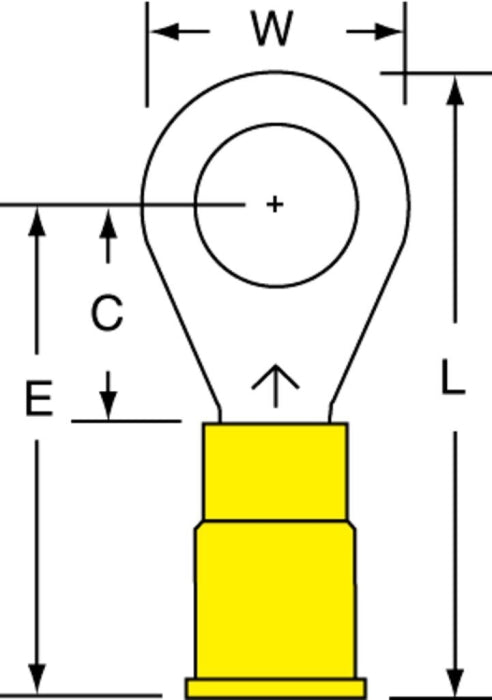

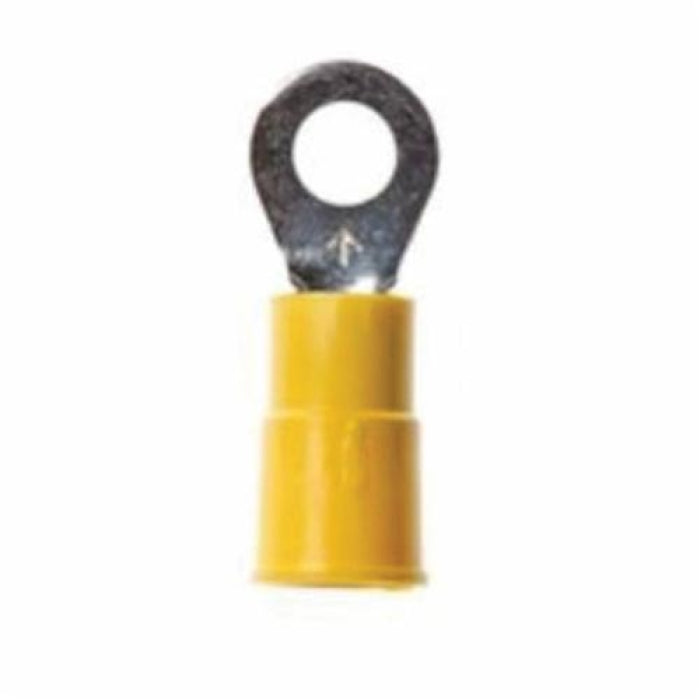

The 3M MV10-516R/SX is a Scotchlok vinyl-insulated small ring tongue terminal designed for 12 to 10 AWG conductors. It uses a brazed-seam barrel and tin-plated electrolytic copper contact with a funnel-entry insulation to ease wire insertion and prevent strand hang-ups. The terminal fits 5/16 in studs, has an overall length of 1.26 in, and is rated 600 V (building wire) and 1000 V (signs/fixtures) with a temperature range of -40 to 221 F (-40 to 105 C).

• Fits 12�10 AWG conductors and 5/16 in (M8) stud; overall length 1.26 in
• Tin-plated ETP copper contact with brazed-seam barrel and vinyl insulation; funnel-entry design
• Electrical ratings: 600 V (building wire), 1000 V (signs/fixtures); temperature -40 to 221 F; UL and CSA listed

Product Highlights

Vinyl-insulated ring terminal for 12�10 AWG with brazed-seam barrel, tin-plated ETP copper construction, 5/16 in stud compatibility, 600/1000 V rating and -40 to 221 F temperature range.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: MV10-516R/SX
• Country of Origin: USA
