3M MV10-38R/SX 50/Bottle Vinyl Insulated Ring

Product Description

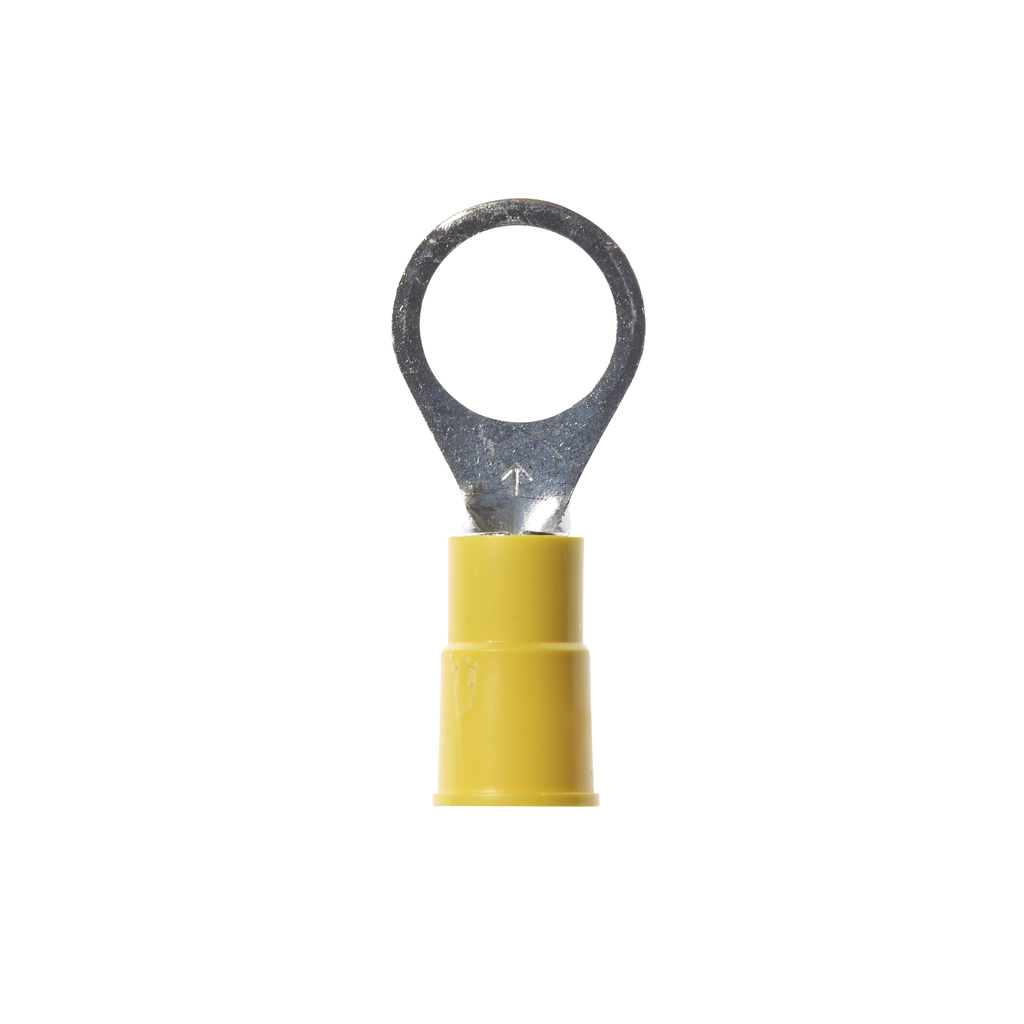

The 3M MV10-38R/SX Vinyl Insulated Ring Terminal is designed for safe and efficient wire connections. This terminal features a yellow vinyl-insulated barrel that fits securely. It is suitable for use in temperatures ranging from negative forty to two hundred twenty-one degrees Fahrenheit. Constructed from electrolytic copper, it ensures good conductivity and features a tin plating for enhanced corrosion resistance.

• Temperature rating: -40 to 221 degrees F (-40 to 105 degrees C)
• Electrolytic copper for optimal conductivity, with corrosion-resistant tin plating
• UL Listed and CSA Certified for reliable connections

Product Highlights

This terminal is designed with a standard-style ring tongue that fits around the mounting stud. It is rated for six hundred volts in building wire applications and one thousand volts for signs and fixtures. The funnel design allows for easy wire insertion, accommodating wire sizes from twelve to ten AWG.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M Electrical Products

Technical Specifications

• Catalog Number: MV10-38R/SX
• Material: Vinyl
• Stud Size: 3/8 in
• Overall Length: 1.26 in
• Color: Yellow
• Terminal Size: 12 - 10 AWG
• Max Operating Temperature: 105 C
• UPC: 051128589830
