3M MV10-10RX TERMINALS
3M 3M MV10-10RX Scotchlok Insulated Standard Ring Terminal 12 to 10 AWG Conductor
3M MV10-10RX TERMINALS
3M MV10-10RX Scotchlok Insulated Standard Ring Terminal 12 to 10 AWG Conductor

3M MV10-10RX Scotchlok Insulated Standard Ring Terminal 12 to 10 AWG Conductor

3M
Brand: 3M
SKU: MV10-10RX
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

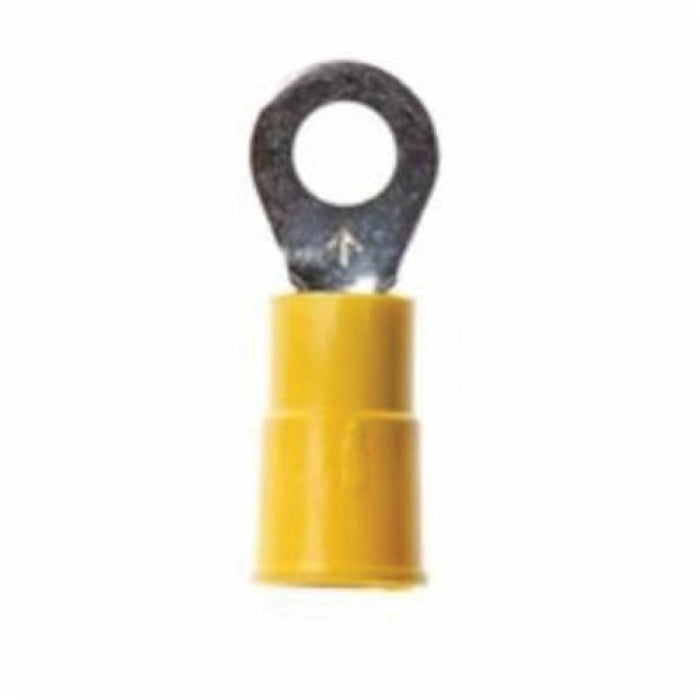

The 3M Scotchlok MV10-10RX is a ring tongue terminal designed for insulated standard applications. This terminal accommodates conductors ranging from twelve to ten AWG and features a brazed seam barrel for reliable connections. With a length of one point zero three inches, it is suitable for use with #10 studs. The terminal is color-coded for easy identification and is made from electrolytic copper, which ensures good conductivity.

  • Insulated standard design for conductors from twelve to ten AWG
  • Brazed seam barrel for secure electrical connections
  • Temperature rating of negative forty to two hundred twenty-one degrees Fahrenheit

Product Highlights

This product is ideal for electrical tasks requiring reliable and secure connections.

Product Information

Standard Information

  • Manufacturer: 3M
  • MPN: MV10-10RX
Technical Specifications
Material
Vinyl
Conductive Metal
Tin plated copper
Stud Size
#10
Voltage Rating
600/1000 VAC

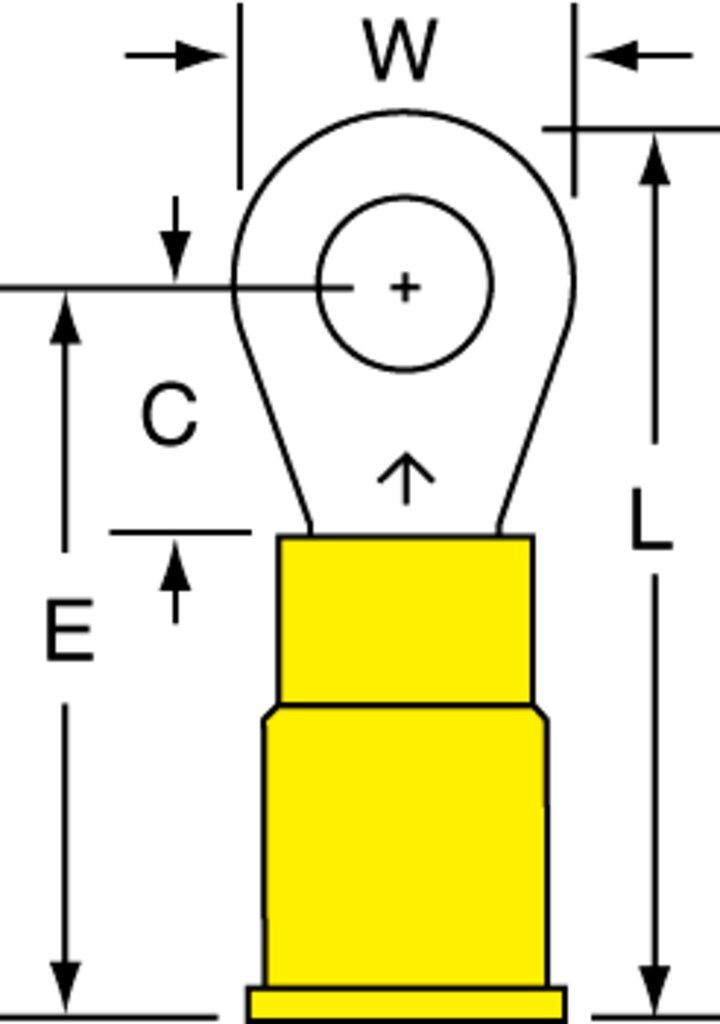

Overall Length
1.03 inches
Tongue Size
0.38 inches wide, 0.04 inches thick
Barrel Diameter
0.135 inches ID
Maximum Operating Temperature
221 degrees Fahrenheit
