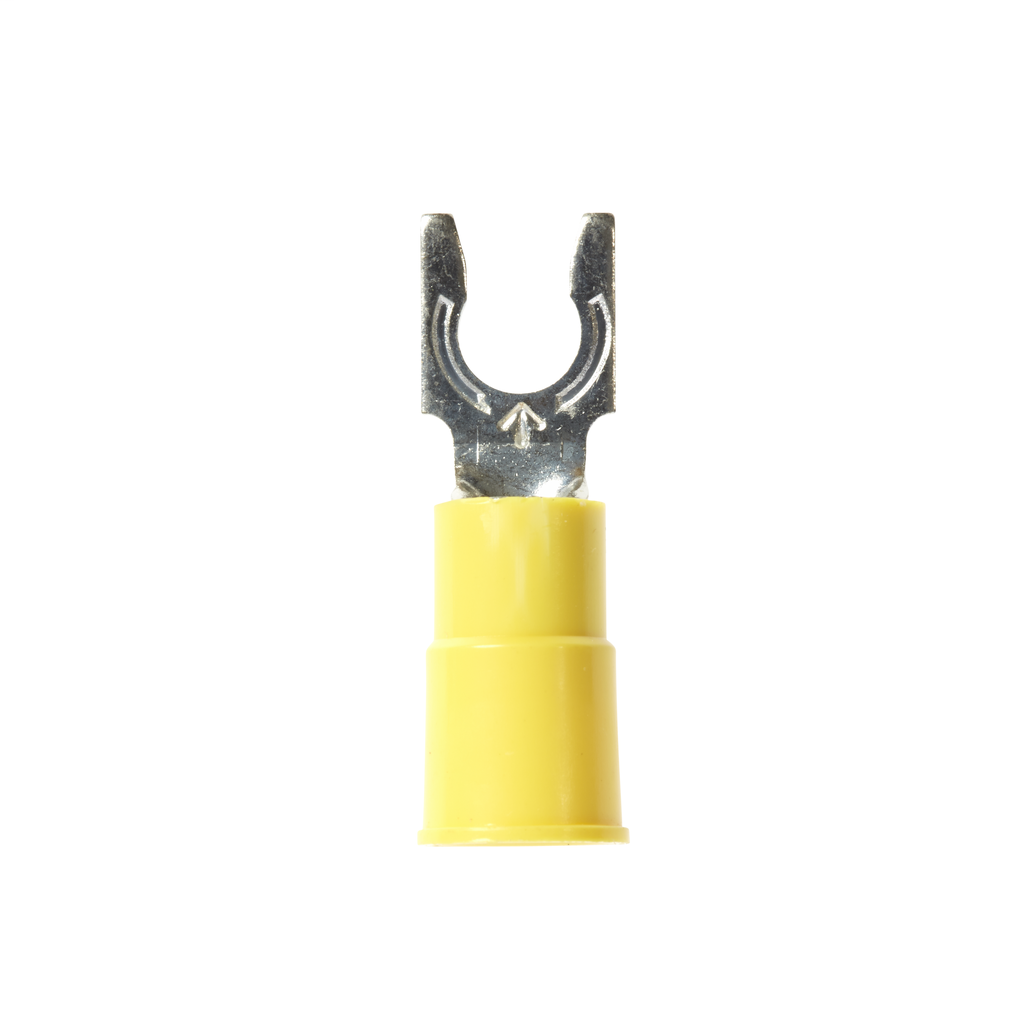

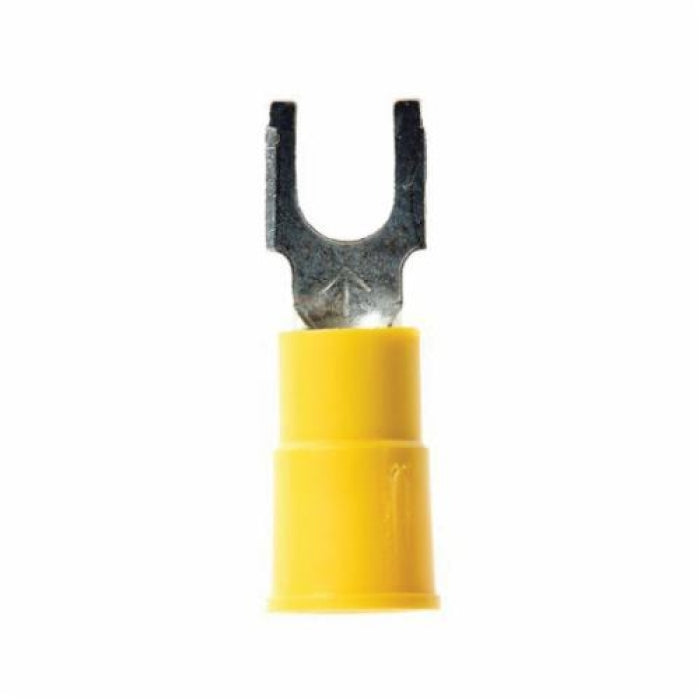

3M MV10-10FX Vinyl Insulated Fork Terminal 600-1000V (12-10 AWG) 3MI-7000133340

Product Description

The 3M MV10-10FX is a vinyl-insulated fork terminal for 12 to 10 AWG conductors, featuring a brazed-seam barrel and a funnel-designed PVC sleeve to guide and secure wire. Constructed of electrolytic copper with a tin-plated finish, the terminal measures 1.03 inches overall with a 0.135-inch barrel ID and 0.25-inch barrel length. It is rated 600 to 1000 VAC and -40 to 221 �F (-40 to 105 �C).

• Fits 12�10 AWG conductors and mates to #10 studs; overall length 1.03 in
• Brazed-seam ETP copper barrel with tin-plated finish for electrical contact and corrosion resistance
• Vinyl (PVC) funnel sleeve for easy wire insertion; rated 600�1000 VAC and -40 to 221 �F

Product Highlights

Vinyl-insulated fork terminal; brazed-seam ETP copper barrel; 600�1000 VAC rating; -40 to 221 �F temperature range

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: MV10-10FX
• Country of Origin: USA
