3M MV10-10FX Vinyl Insulated Fork 50/Bottle

Product Description

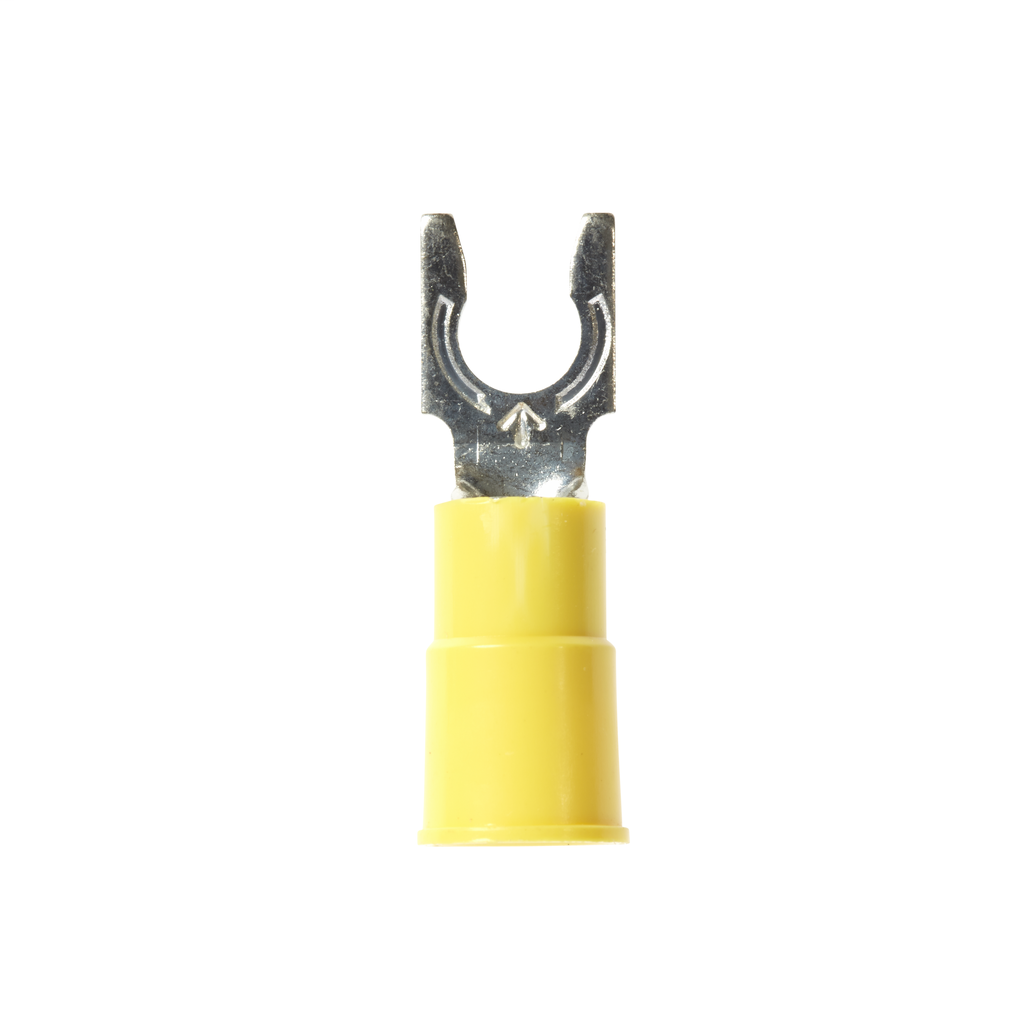

The 3M MV10-10FX Scotchlok Color-Coded Standard Fork is a lug connection terminal with a wider tongue for use on free-standing studs. This terminal features a vinyl-insulated, brazed-seam barrel and withstands temperatures from -40 to 221 degrees F. Its electrolytic copper construction ensures good conductivity, while the tin-plated finish resists corrosion.

• Accommodates wire sizes 12 to 10 AWG
• Features a wider-tongue design for use on free-standing studs
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Highlights

The 3M MV10-10FX fork terminal is ideal for secure and reliable connections, offering a durable construction and compliance with industry standards.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: MV10-10FX
• Country of Origin: USA

Technical Specifications

• Type: Standard
• Brand: 3M
• Color: Yellow
• Width: 0.38 in
• Finish: Tin Plated
• Length: 1.03 Inch
• Voltage: 600 Volt
• Material: Copper
• Stud Size: 10
• Sub Brand: Scotchlok™
• Thickness: 0.04 in
• Barrel Type: Brazed
• Barrel Length: 0.25 in
• Terminal Size: 12 - 10 AWG
• Terminal Type: Fork
• Conductor Size: 12-10 AWG
• Overall Length: 1.03 in
• Terminal Style: Standard
• Barrel Diameter: 0.135 in ID
• Temperature Rating: -40 to 105 degrees C
• Insulation Material: Vinyl
• Max Operating Temperature: 221 degrees F
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Vinyl Insulated
• Approval: UL 486A, CSA C22.2
• Voltage Rating: 600 V (Building Wire), 1000 V (Signs, Fixtures)
• Terminal Material: Tin Plated ETP Copper
• Barrel Style: Brazed Seam
• Manufacturer: 3M
