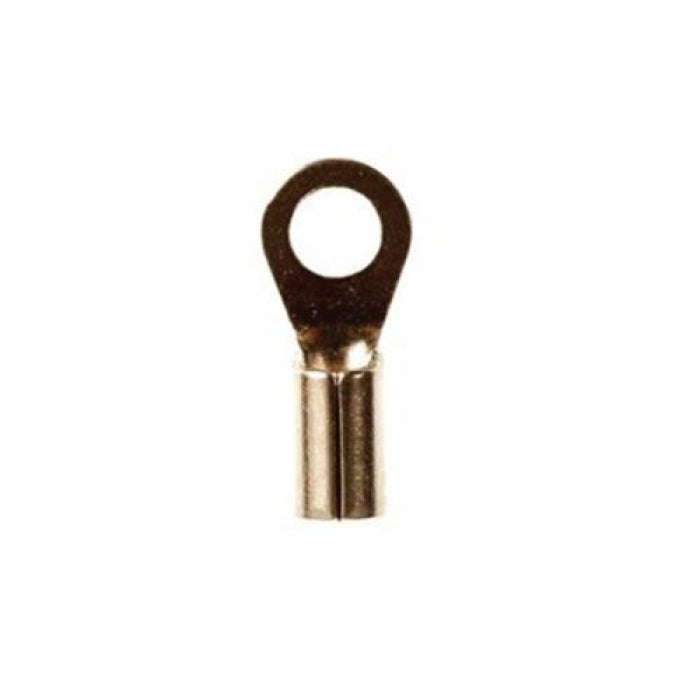

3M MU14-6RHT/SX Scotchlok High Temperature Ring Terminal 16-14 AWG #6 Stud

Product Description

The 3M MU14-6RHT/SX Scotchlok high temperature small ring tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel ensures a secure fit. Constructed of durable steel with nickel plating for corrosion resistance. It withstands a maximum temperature of 900 degrees F (482 degrees C).

• Non-insulated, butted seam barrel ensures a secure fit
• Beveled mouth offers easy insertion of wires
• Made of durable steel for high temperature applications and has nickel plating for corrosion-resistance

Product Highlights

High-temperature ring terminal with a non-insulated, butted-seam barrel, ideal for ovens, motors, and light fixtures.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: MU14-6RHT/SX
• Country of Origin: United States

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Stud Size: #6
• Length: 0.6 in
• Barrel Type: Butted Seam
• Barrel ID: 0.09 in
• Barrel Length: 0.25 in
• Tongue Type: Ring
• Tongue Width: 0.25 in
• Tongue Thickness: 0.03 in
• Voltage Rating: 600/1000 VAC
• Clearance: 0.22 in
• Maximum Temperature: 900 deg F
• Material: Steel, Nickel Plated
• Overall Length: 0.6 in
• Connection Type: Crimp
• Insulation Type: Bare
• Insulation Material: Non-insulated
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
