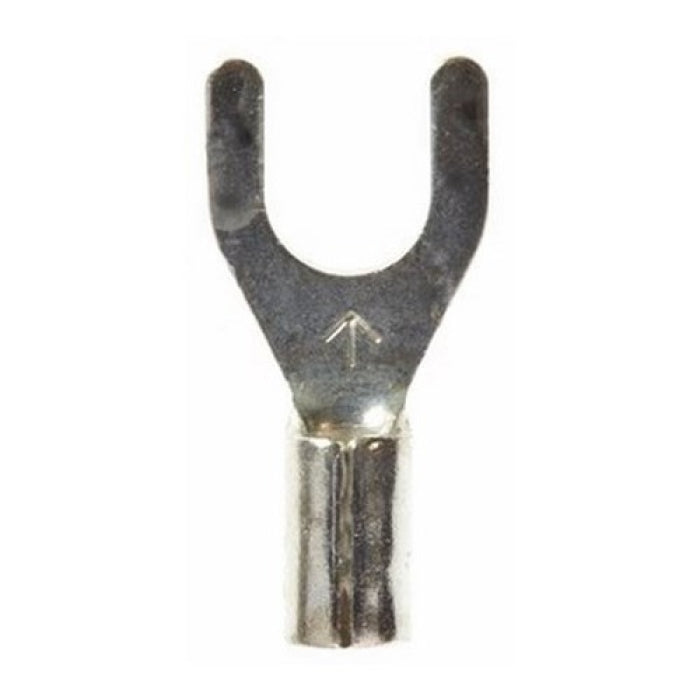

3M MU14-10FK Scotchlok Fork Non-Insulated Butted Seam 16-14 Awg

Product Description

The Scotchlok fork terminal from 3M, model MU14-10FK, is designed for use with copper conductors ranging from sixteen to fourteen American Wire Gauge (AWG). It includes a butted seam barrel and is suitable for connections needing a standard fork. This terminal can accommodate a #10 stud and is rated for voltages up to one thousand VAC, withstanding temperatures of up to three hundred forty-seven degrees Fahrenheit.

• Non-insulated design for various applications.
• ETP copper construction ensures optimal conductivity.
• Butted seam barrel guides the wire into position for secure connections.

Product Highlights

This fork terminal is perfect for quick connections where reliable performance is essential. The design allows efficient attachment to free-standing studs.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M

Technical Specifications

• MPN: MU14-10FK
• Conductor Size Range: 16 to 14 AWG
• Length: 0.7 inches
• Stud Size: #10
• Voltage Rating: 600 to 1000 VAC
• Temperature Rating: 347 degrees F
• Material: ETP copper, tin-plated
• Dimensions: 0.34 inches wide x 0.03 inches thick
