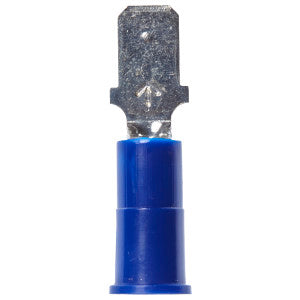

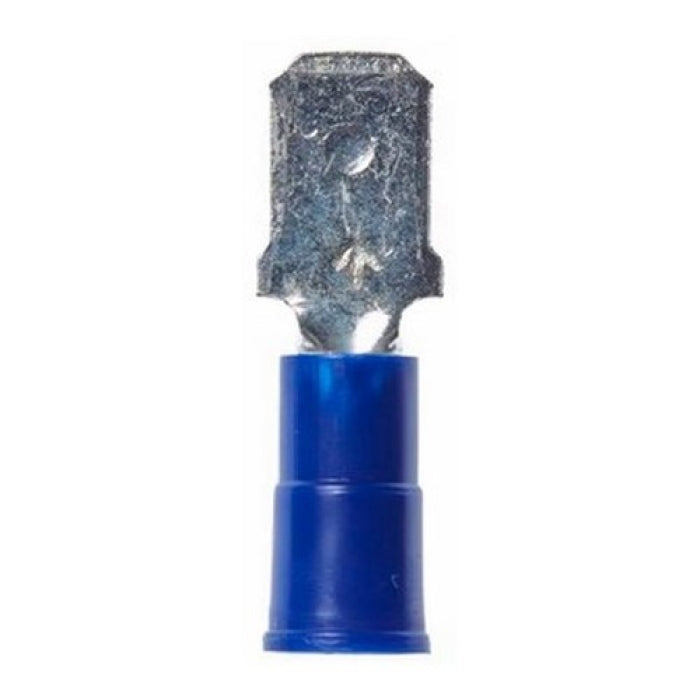

3M MTV14-250Q Insulated Male Disconnect Terminal 16 to 14 AWG 1/4 in Tab 7000133670

Product Description

The 3M MTV14-250Q Insulated Male Disconnect Terminal is designed for secure wire connections in electrical systems. This terminal accommodates conductors sized between sixteen and fourteen AWG and features a quarter inch tab for compatibility with various female connectors. The butted seam barrel ensures a strong and reliable connection.

• Made from electrolytic copper for effective conductivity
• Vinyl insulation for durability and protection
• Operates effectively in temperature ranges from negative forty to two hundred twenty-one degrees Fahrenheit

Product Highlights

This terminal allows for quick and easy wire disconnection while maintaining excellent holding force. Its design is suitable for a variety of applications in electrical wiring.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: MTV14-250Q

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Tab Size: 0.25 inches
• Insulation Type: Vinyl fully insulated
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600/1000 VAC
• Standards/Approvals: UL Listed, CSA Certified
• Material: Electrolytic Copper with Tin Plating
• Dimensions: 0.93 inches in length
