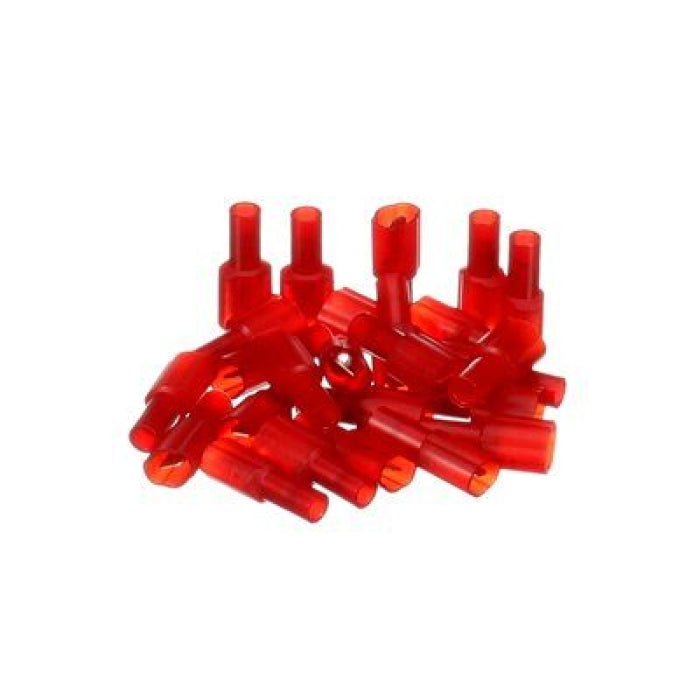

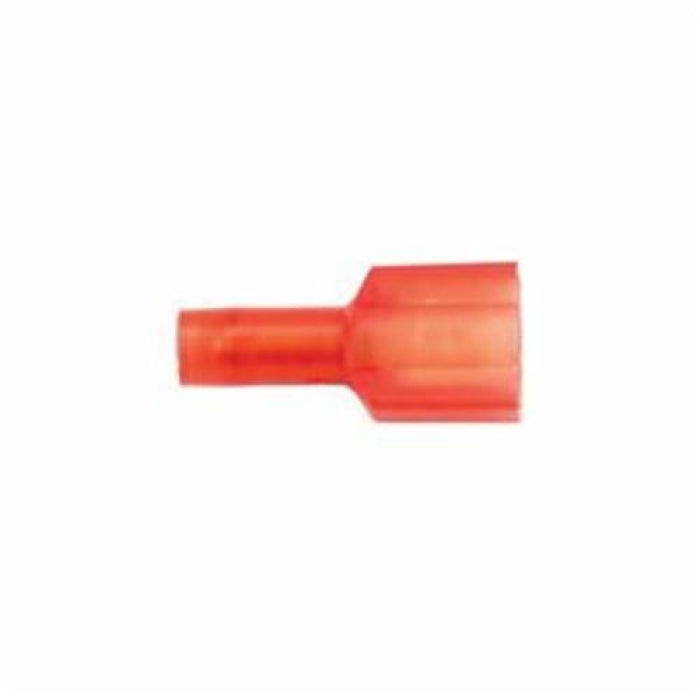

3M MTI18-187Q Fully Insulated Male Disconnect Terminal 22 to 18 AWG Conductor 0.02 x 0.187 in Tab

Product Description

The 3M MTI18-187Q is a fully insulated male disconnect terminal designed for use with 22 to 18 AWG conductors. This terminal features a 0.02 x 0.187 inch tab, a butted barrel, and is made from electrolytic copper combined with nylon insulation. It operates safely at a voltage rating of 600 VAC and is suitable for applications ranging from building wire to signs and fixtures. It is an essential component for electrical professionals looking for reliability and efficiency in their connections.

• Nylon insulated for safety
• Quick and easy wire disconnect
• Rated for 600 VAC and 1000 V applications

Product Highlights

This terminal offers robust conductivity and is corrosion-resistant due to its tin plating.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M
• Part #: 3MI-7010350243
• UPC: 051128600252

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Tab Size: 0.02 x 0.187 in
• Voltage Rating: 600 VAC
• Temperature Range: -40 to 221 degrees F
• Overall Length: 0.95 in
• Barrel Length: 0.25 in
• Barrel ID: 0.065 in
