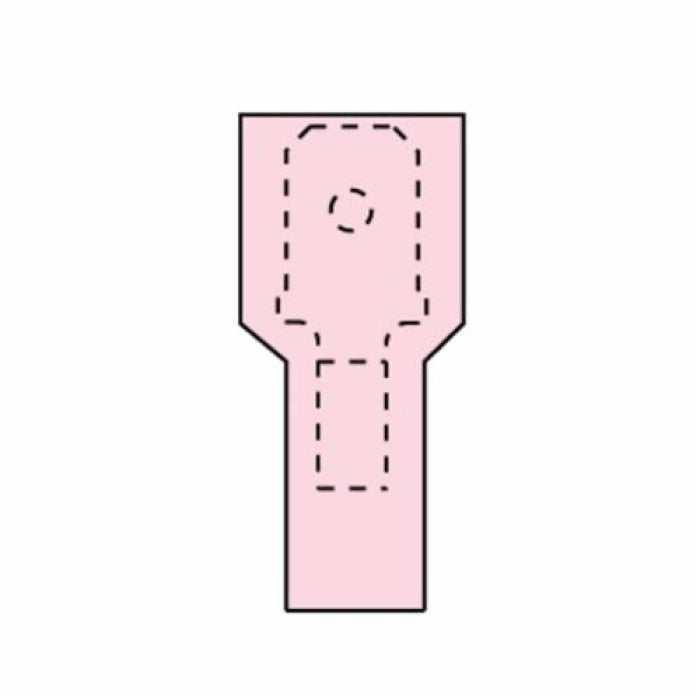

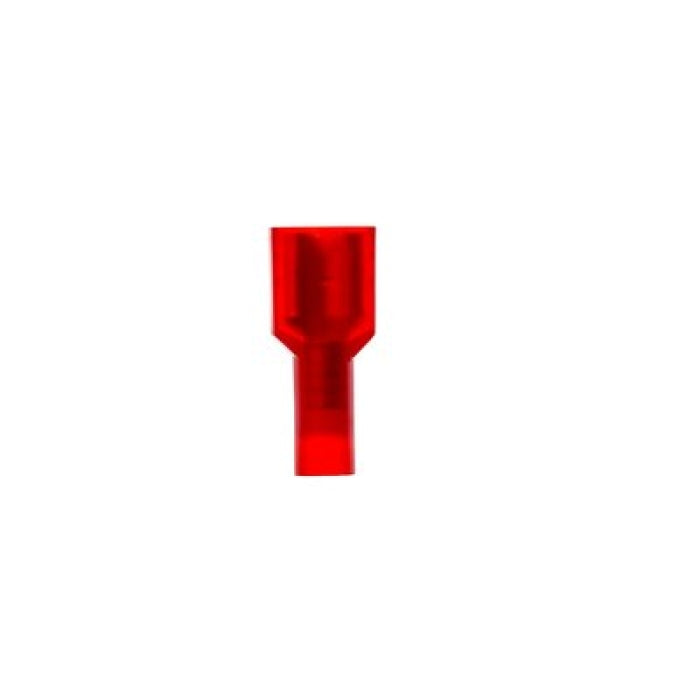

3M MNU18-250DFIX Fully Insulated Female Disconnect Terminal 22 to 18 AWG 1/4 in Tab

Product Description

The 3M MNU18-250DFIX is a fully insulated female disconnect terminal designed for use with 22 to 18 AWG conductors. The terminal features a one-quarter inch tab and has a butted barrel with an inner diameter of 0.08 inches. It is suitable for high voltage applications due to its rating of 600 VAC. This terminal is ideal for a variety of electrical connections where dependable performance is required.

• Temperature rating from -40 to 221 degrees Fahrenheit
• Features sturdy brass construction and tin-plated finish for corrosion resistance
• UL recognized and CSA certified for safety standards

Product Highlights

This terminal ensures secure connections and facilitates easy disconnection, making it suitable for various professional applications in the electrical field.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: MNU18-250DFIX

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 221 degrees F
• Overall Length: 0.87 inches
• Insulation Material: Nylon
• Barrel Type: 0.08 in ID Butted
• Tab Size: 1/4 in
• Material: ETP Copper
