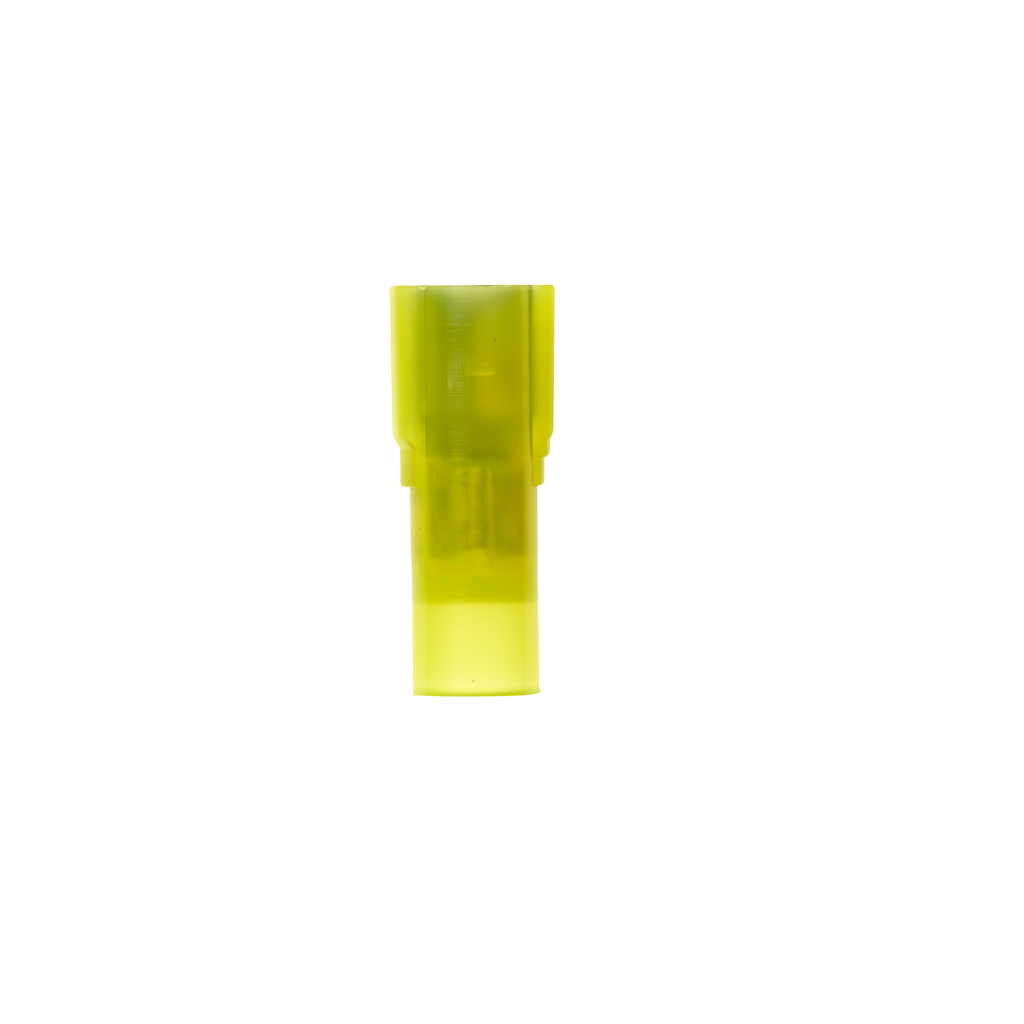

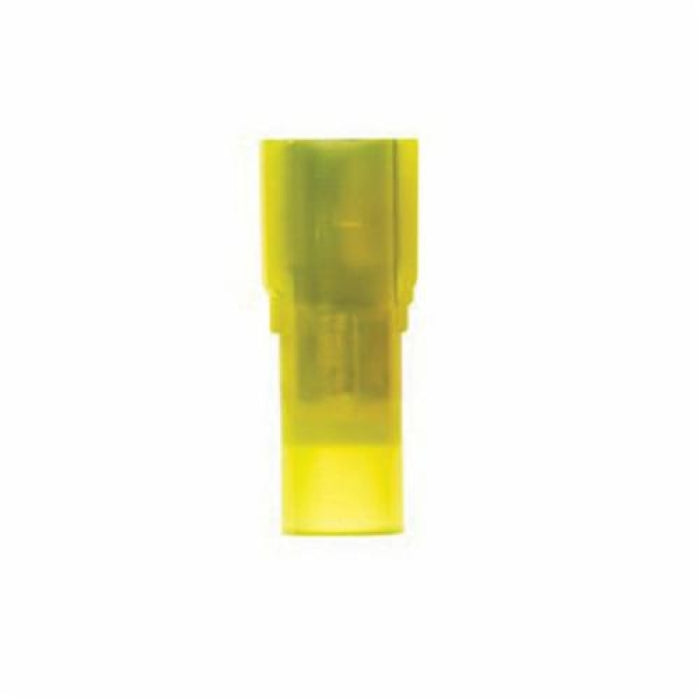

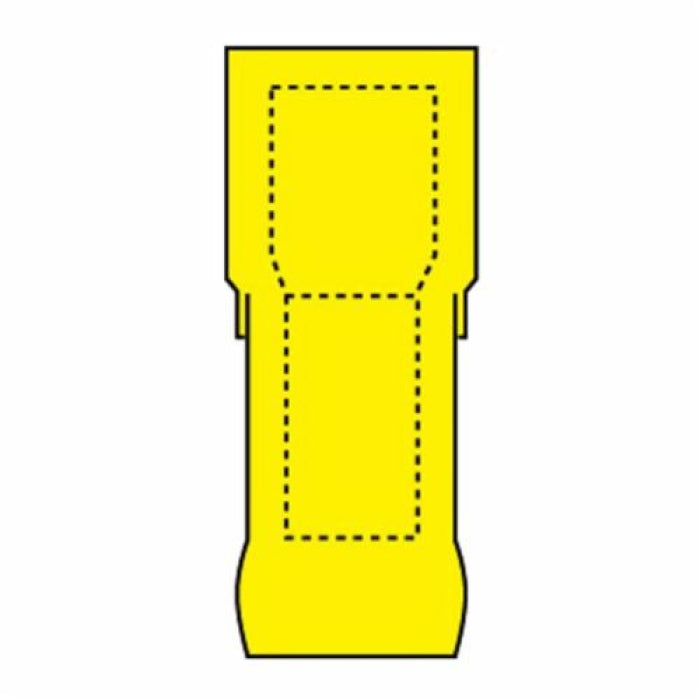

3M MNI10-250DFIX Scotchlok Female Disconnect Terminal

Product Description

The 3M MNI10-250DFIX Scotchlok color coded female disconnect terminals feature dents and rolled edges for a strong hold and easy disconnection. The terminals' tongues slip over male tabs for secure attachment. These yellow terminals have interlocking barrels with butted seams and flared nylon sleeves for error-proof crimping and secure electrical contact.

• Attached to mating part by tongue of female part slipping over male tab
• Dents and rolled edges provide excellent holding force while allowing easy and quick disconnect
• Withstands temperatures of -40 to 221 deg F (-40 to 105 deg C)

Product Highlights

The 3M Scotchlok MNI10-250DFIX female disconnect terminals are UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: MNI10-250DFIX
• Country of Origin: USA

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Insulated: Yes
• Material: ETP Copper/Nylon
• Tab Size: 1/4 in
• Temperature Rating: -40 to 221 deg F
• Voltage Rating: 600 VAC
• Color: Yellow
• Sub Brand: Scotchlok
• Terminal Size: 12 - 10 AWG
• Terminal Type: Disconnect
• Terminal Style: Fully Insulated
• Connection Type: Wire
• Insulation Material: Nylon
• Max Operating Temperature: 221 degrees F
• Standards/Approvals: CSA Certified|RoHS Compliant|UL Listed
• Termination Type: Crimp
• Type: Crimp Connector
• Country of Origin: USA
• Barrel Type: 0.128 in ID x 0.25 in L Interlocking
• Thickness: 0.032 in
• Barrel Length: 0.25 in
• Overall Length: 0.99 in
