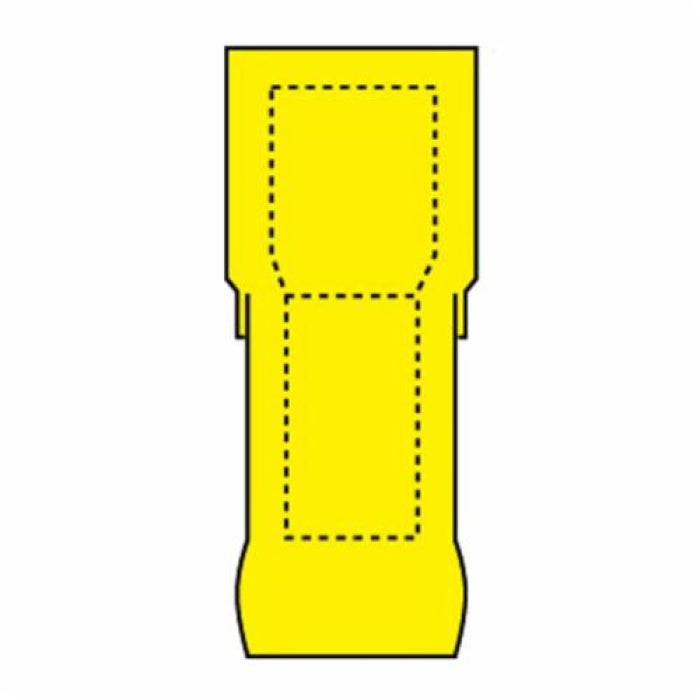

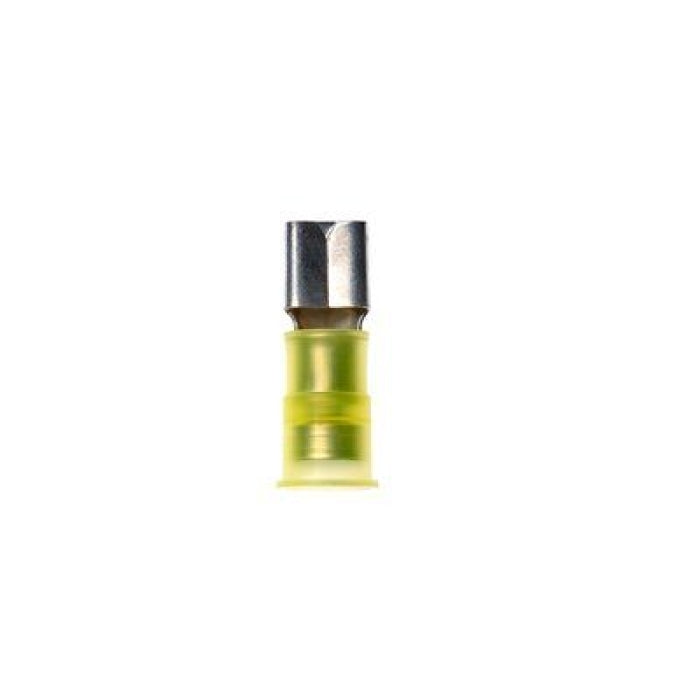

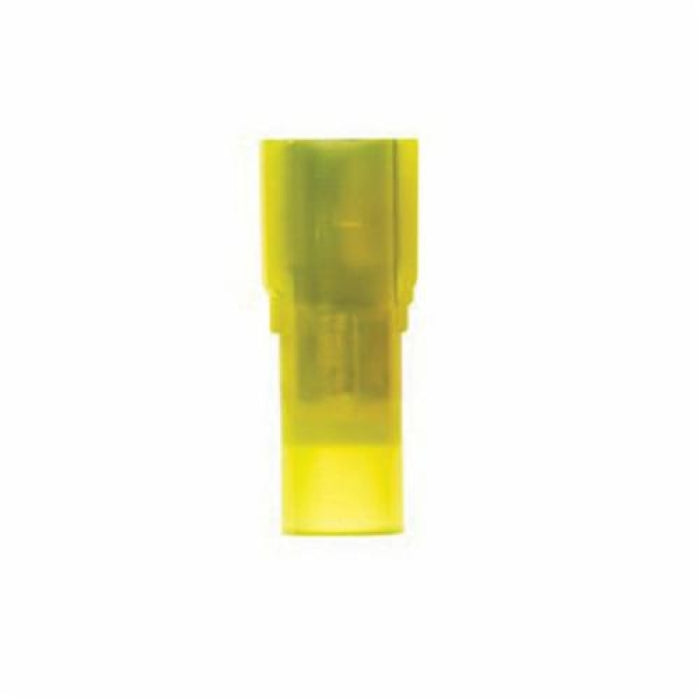

3M MNGI10-250DFX Standard Female Disconnect Terminal 12 to 10 AWG 1/4 in Tab

Product Description

The 3M MNGI10-250DFX is a standard female disconnect terminal designed for insulated connections. It accommodates wire sizes from twelve to ten AWG. This terminal features a one-fourth inch tab, making it compatible with various applications. Its interlocking barrel design provides reliability during use and allows for a quick disconnect option. The terminal is made with ETP copper, ensuring optimal electrical conductivity while the yellow insulation offers visibility.

• Interlocking barrel design for secure connections
• Compatible with 12 to 10 AWG wire sizes
• Withstands temperatures from negative forty to two hundred twenty-one degrees Fahrenheit

Product Highlights

The 3M MNGI10-250DFX standard female disconnect terminal is built for easy attachment and disconnection. The terminal is recognized for its rugged construction which prevents corrosion, ensuring long-term performance in electrical applications.

Product Information

Standard Information

• Brand: 3M
• Type: Standard Female Disconnect

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Overall Length: 0.94 inches
• Tab Size: 1/4 inches
• Material: ETP Copper
• Insulation Material: Nylon
• Weight: 3.1 grams
