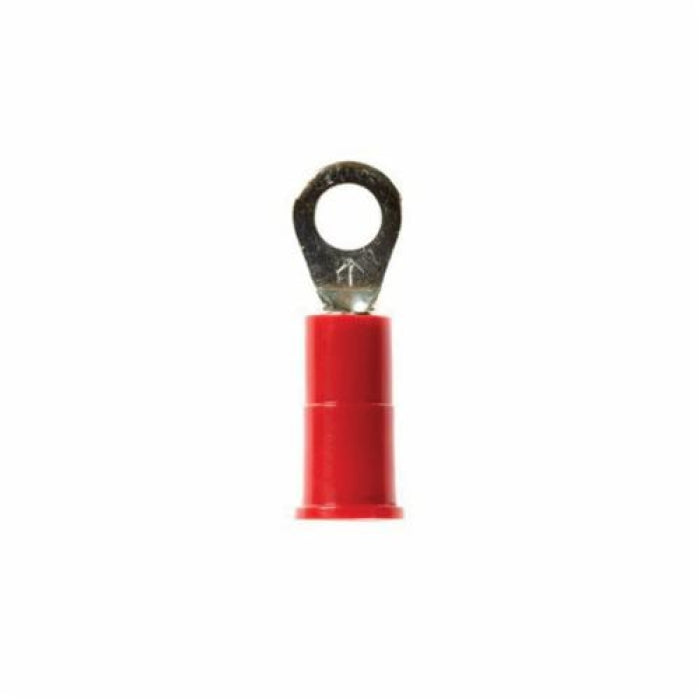

3M MNG18-6R/SX TERMINALS

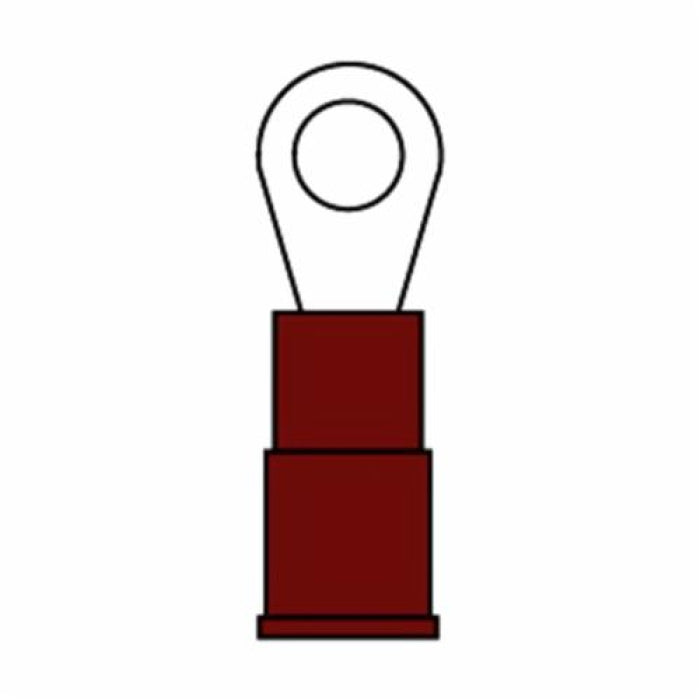

3M 3M MNG18-6R/SX Standard Ring Tongue Terminal 22 to 18 AWG Conductor
3M MNG18-6R/SX TERMINALS
3M MNG18-6R/SX Standard Ring Tongue Terminal 22 to 18 AWG Conductor

3M MNG18-6R/SX Standard Ring Tongue Terminal 22 to 18 AWG Conductor

3M
Brand: 3M
SKU: MNG18-6R/SX
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
LTL Delivery

This product weighs 80 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

3M MNG18-6R/SX is a standard ring tongue terminal designed for use with 22 to 18 AWG conductors. This terminal features a butted seam design and is made from electrolytic copper, ensuring good conductivity and performance. The nylon insulation offers reliable protection and supports a temperature range from -40 to 221 degrees Fahrenheit. The terminal is UL Listed and CSA certified, making it suitable for various applications in electrical installations.

  • Compatible with 22 to 18 AWG conductors.
  • Voltage rating of 600 to 1000 VAC.
  • Temperature rating from -40 to 221 degrees Fahrenheit.

Product Highlights

This terminal is easy to install and provides a secure crimp connection, ideal for electrical work.

Product Information

Standard Information

  • Brand: 3M
  • MPN: MNG18-6R/SX
Technical Specifications
Voltage Rating
600 to 1000 VAC
Conductor Size
22 to 18 AWG
Stud Size
#6
Length
0.79 in
Barrel Diameter
0.07 in ID
Material
ETP Copper
Insulation Material
Nylon
Temperature Rating
-40 to 221 degrees F
Dimensions
0.25 in W x 0.03 in THK
