Description

Product Description

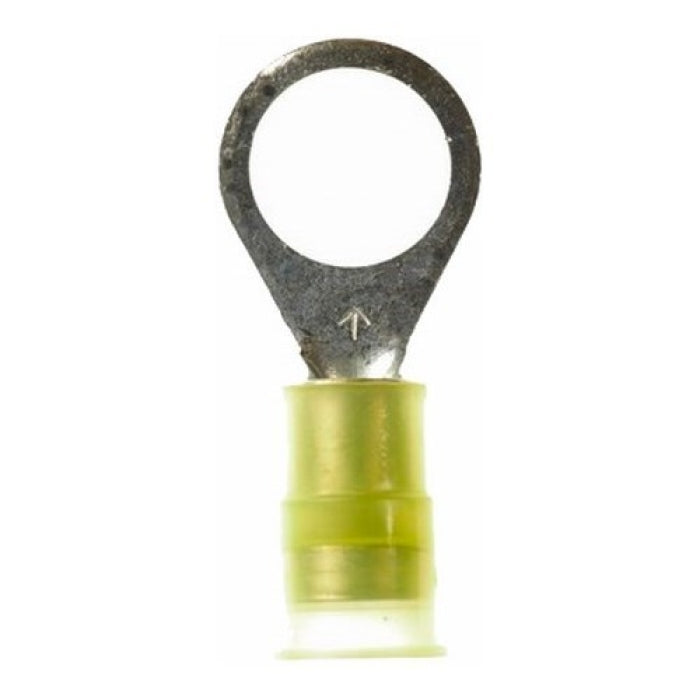

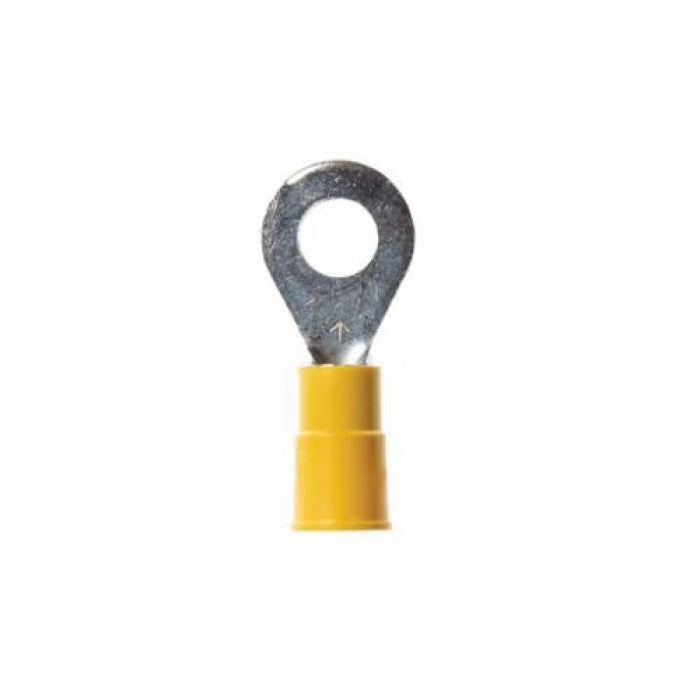

The 3M MNG10-38R/SK is a standard ring tongue terminal designed for reliable electrical connections. Constructed from electrolytic copper, this terminal is engineered to meet the demands of various applications. It is suitable for conductor sizes ranging from 12 to 10 AWG, making it versatile for different wiring needs.

  • Temperature range of -40 to 221 degrees Fahrenheit.
  • Corrosion-resistant tin plated finish.
  • Nylon insulation with butted seam barrel design.

Product Highlights

This terminal delivers dependable performance with its robust design. It includes features that enhance safety and reliability in electrical connections.

Product Information

Standard Information

  • Brand: 3M
  • MPN: MNG10-38R/SK
Technical Specifications
Conductor Size Range
12 to 10 AWG
Stud Size
3/8 inch
Material
ETP Copper
Voltage Rating
600 VAC
Dimensions
1.26 inches length, 0.54 inches width, 0.04 inches thickness
Inner Diameter
0.135 inch
Maximum Wire Insulation Diameter
0.25 inch
Temperature Rating
-40 to 105 degrees Celsius
