3M MN8-14R/SK Scotchlok Ring Tongue Nylon Insulated Brazed Seam 1/4

Product Description

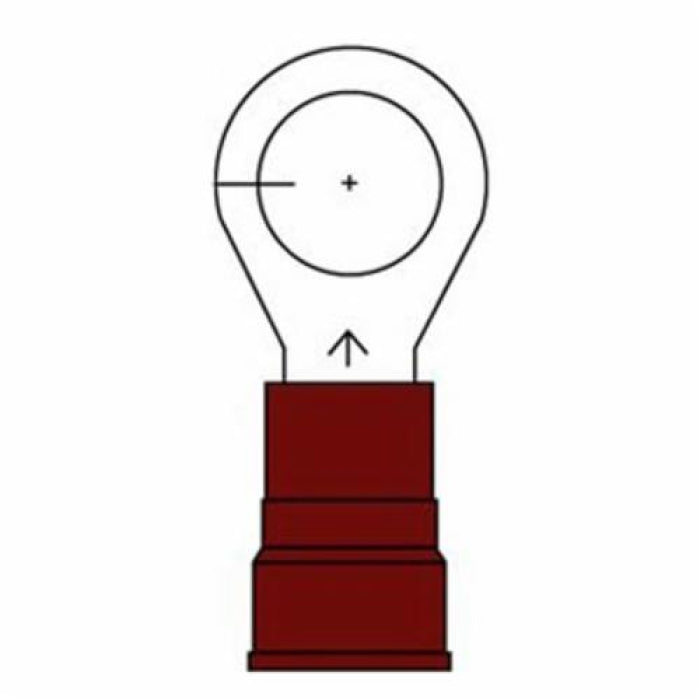

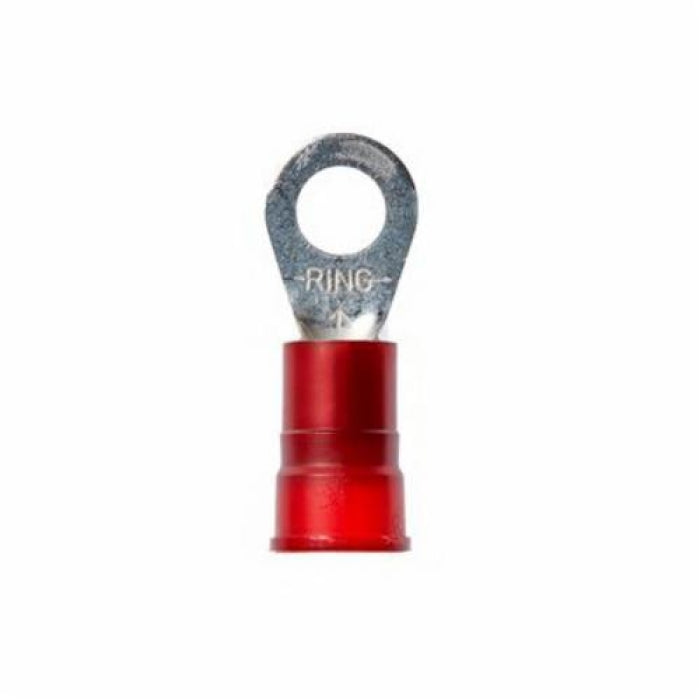

The Scotchlok MN8-14R/SK is a ring tongue terminal from 3M. This terminal is designed for use with 8 AWG conductors. It features a nylon insulated design with a brazed seam barrel that provides durability and reliability. The terminal can withstand temperatures ranging from -40 to 221 degrees Fahrenheit, making it suitable for various environments.

• Standard style ring tongue terminal
• Nylon insulation for enhanced safety
• Compatible with 1/4 inch studs

Product Highlights

This terminal guarantees a secure connection for electrical applications.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: Scotchlok

Technical Specifications

• MPN: MN8-14R/SK
• Max Conductor Size: 8 AWG
• Stud Size: 1/4 inch
• Temperature Rating: -40 to 221 degrees F
• Voltage Rating: 600 to 1000 VAC
• Dimensions: 1.26 inches long, 0.175 inches ID, 0.31 inches length of barrel
• Material: ETP Copper
