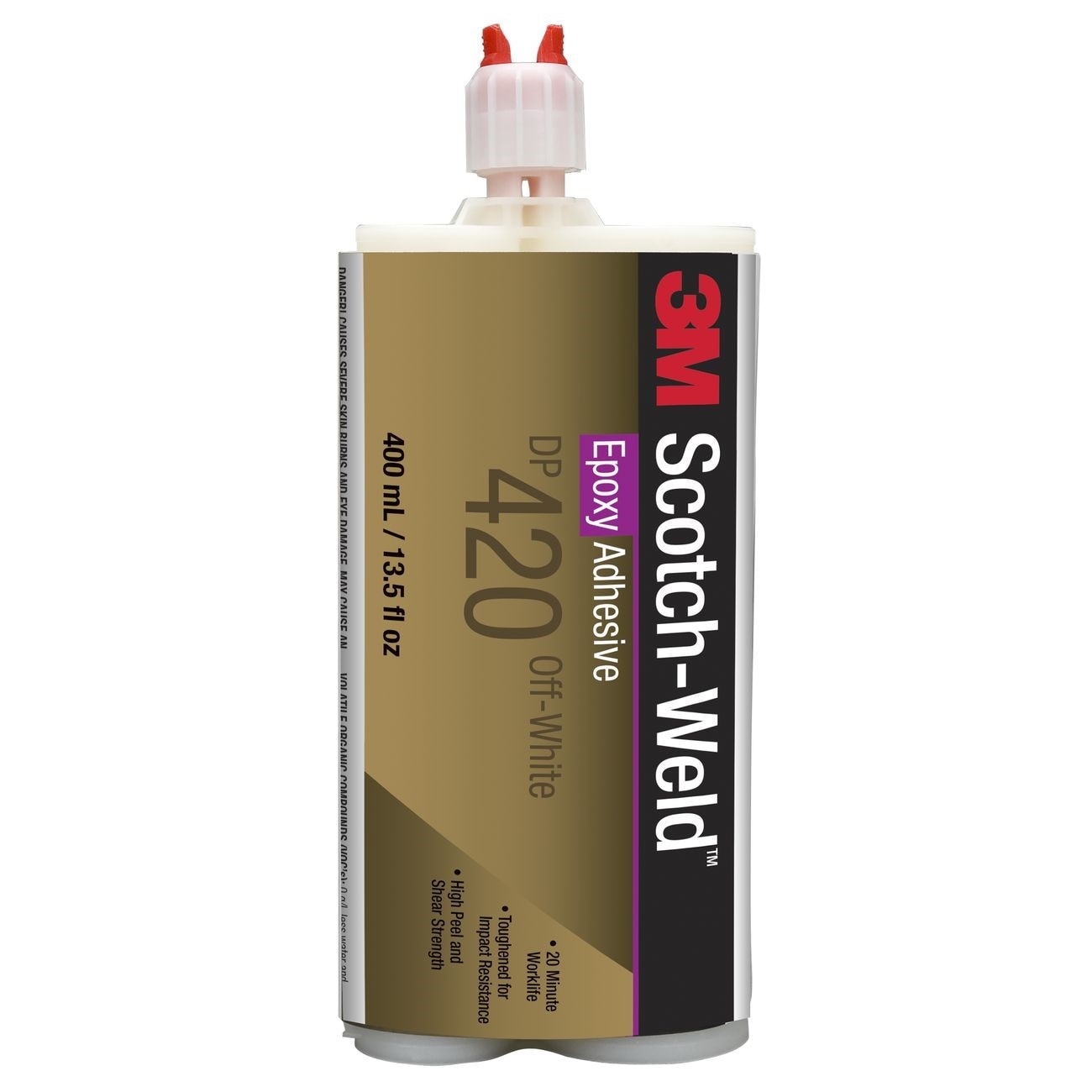

3M 7100002516 Scotch-Weld Epoxy Adhesive DP420 400 mL Duo-Pak

Product Description

The 3M 7100002516 Scotch-Weld Epoxy Adhesive DP420 is a two-part, epoxy-based structural adhesive offering controlled flow and durability. It features high shear and peel strength, and can replace mechanical fasteners, screws, rivets, and spot welds. Available in a 400 mL Duo-Pak cartridge, it is not for consumer/retail sale.

• Two component, epoxy-based, structural adhesive
• Controlled flow and easy mixing
• High shear and peel strength

Product Highlights

This epoxy adhesive is suitable for demanding bonding challenges, offering high impact and fatigue resistance. It can be used on ceramic, glass, and metal.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100002516
• Country of Origin: US

Technical Specifications

• MPN: 7100002516
• Manufacturer: 3M
• Brand: 3M
• ProductCategory: Adhesives, Sealants & Tapes
• Typical Use: High performance adhesive for bonding a wide variety of substrates with outstanding levels of reliability and durability.
• Chemical Composition: Base: epoxy; Accelerator: amine
• Components: 2 part
• Cure System: Room Temperature
• Cure Time: 24 hr at 22 °C
• Dielectric Strength: 690 V/mil
• Flash Point: 171.1 °C
• Hardness: 75 to 80 D
• Mix Ratio: 2:1 by volume; 2:0.97 by weight
• Shear Strength: 4,500
• Specific Gravity: 1.14
• Thermal Conductivity: 0.104
• Viscosity: Base: 20,000 to 50,000; Accelerator: 8,000 to 14,000
• Volume Resistivity: 1.3 x 10^14 ohm-cm
• Working Time: 15 to 30min
• Container Size: 400 mL
• Work Life: 20 min
• Base: Epoxy
• For Use On: Ceramic, Glass and Metal
