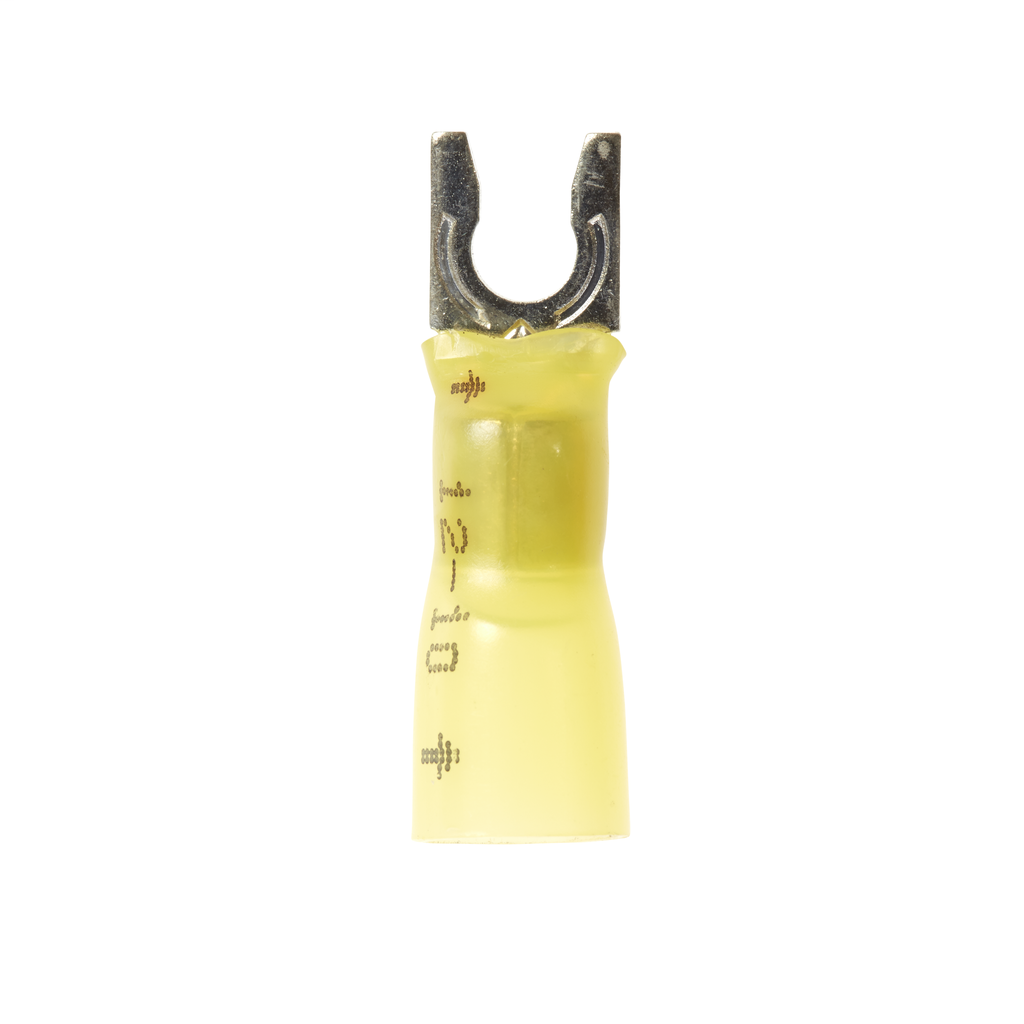

3M MH10-8FLX Scotchlok Heat Shrink Locking Fork Terminal

Product Description

The 3M Scotchlok MH10-8FLX is a heat shrink locking fork terminal designed for reliable electrical connections. This terminal features a brazed-seam barrel that is covered with adhesive-lined tubing for moisture-sealed protection. It is ideal for various wire sizes and applications, providing a dependable solution for HVAC, electrical, and plumbing installations.

• Electrolytic copper construction ensures strong conductivity.
• Rated for a maximum temperature of 221 degrees Fahrenheit (105 degrees Celsius).
• UL Listed and RoHS compliant for safety assurance.

Product Highlights

Locking fork terminals provide a secure fit around the stud, ensuring stability and reliability in connections.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M Electrical Products

Technical Specifications

• Catalog Number: MH10-8FLX
• Material: Copper
• Color: Yellow
• Stud Size: #8
• Terminal Type: Fork
• Wire Size: 12 - 10 AWG
• Insulation Material: Heat Shrink
• UPC: 051128588895
