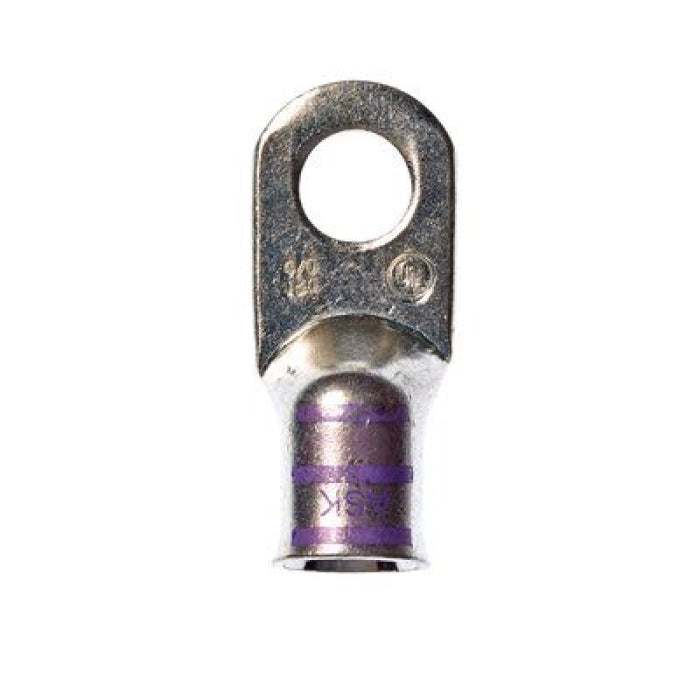

3M MC4/0-38RX Non-Insulated Large Gauge Corrosion-Resistant Compression Lug Terminal 4/0 AWG Copper Conductor

Product Description

The 3M MC4/0-38RX is a non-insulated compression lug terminal designed for large gauge applications. This product features a seamless barrel for a secure fit. It connects to a four AWG copper conductor and is made from electrolytic tin-plated copper for reliable conductivity. The terminal is rated for a maximum voltage of 600 VAC and a temperature tolerance of 347 degrees Fahrenheit. It is UL approved and suitable for various electrical applications.

• Non-insulated and seamless barrel design
• Compatible with a 3/8 inch stud size
• Constructed from corrosion-resistant materials

Product Highlights

This compression lug terminal provides an efficient and safe connection for electrical wiring.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: 3M Electrical Products

Technical Specifications

• Type: Compression Lug
• Conductor Size: 4/0 AWG
• Stud Size: 3/8 inch
• Material: ETP Copper
• Dimensions: 2.29 inches L x 1 inch W x 0.125 inches THK
• Barrel Size: 0.56 inches ID
• Color: Purple
• Voltage Rating: 600 VAC
