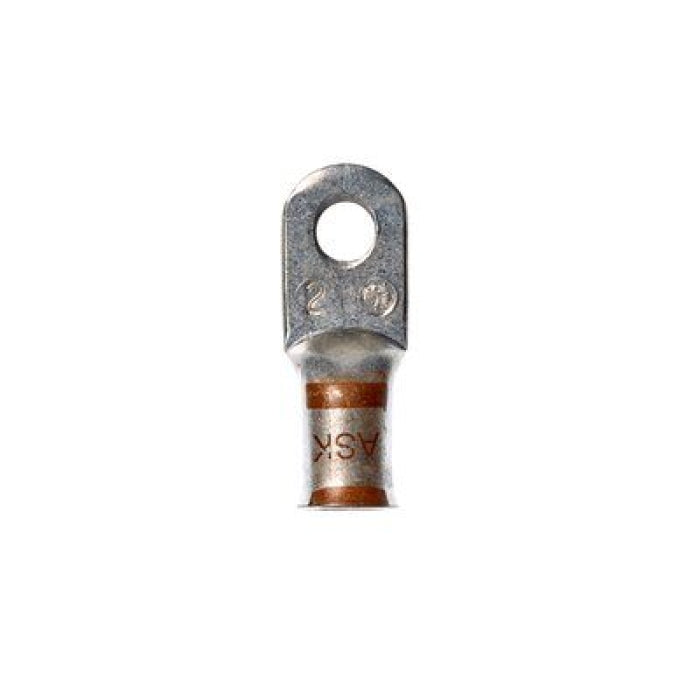

3M MC2-38RX Non-Insulated Large Gauge Corrosion-Resistant Compression Lug Terminal

Product Description

3M MC2-38RX is a non-insulated large gauge compression lug terminal. This terminal is designed for use with two AWG copper conductors. The seamless barrel ensures secure connection. Suitable for a range of electrical applications, it provides reliable conductivity and corrosion resistance.

• Non-insulated and seamless barrel design
• 600 VAC voltage rating
• Compatible with 3/8 inch studs

Product Highlights

The 3M compression lug is made of ETP copper for excellent conductivity and longevity. Its tin plating adds extra resistance against corrosion, making it suitable for harsh environments.

Product Information

Standard Information

• Brand: 3M
• MPN: MC2-38RX

Technical Specifications

• Conductor Size: 2 AWG
• Stud Size: 3/8 inch
• Barrel Size: 0.34 inch ID
• Temperature Rating: 347 deg F
• Dimensions: 1.69 inch length x 0.65 inch width x 0.1 inch thickness
• Approval: UL
• Material: ETP Copper
• Standard Package: 100 per case
