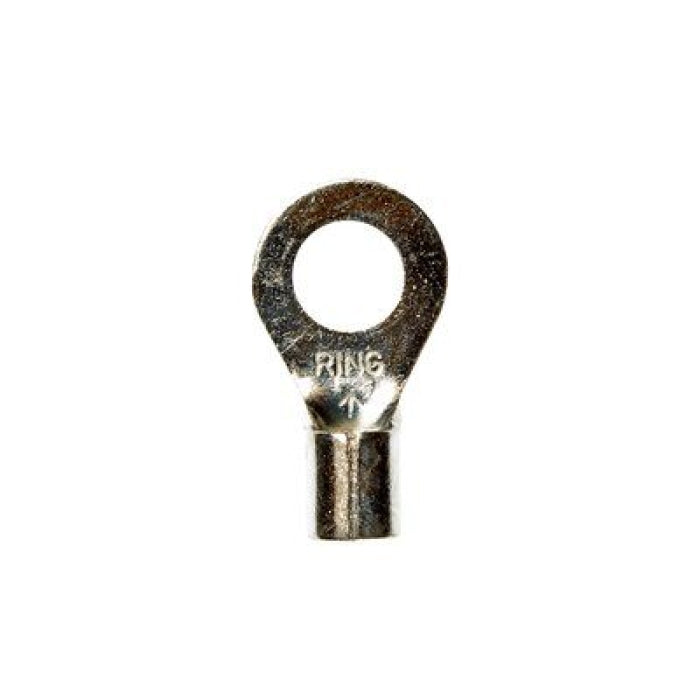

3M M8-516RX Standard Ring Tongue Terminal 8 AWG

Product Description

The 3M M8-516RX is a standard ring tongue terminal designed for 8 AWG conductors. This terminal features a brazed seam barrel and a beveled mouth that allows for easy wire insertion, ensuring a secure fit. With a maximum temperature rating of 347 degrees Fahrenheit, it is suitable for a wide range of electrical applications.

• Non-insulated design for improved safety
• Constructed from electrolytic copper for excellent conductivity
• Compatible with 5/16 inch studs

Product Highlights

This terminal is ideal for use in various wiring applications, providing reliable performance and stability.

Product Information

Standard Information

• Brand: 3M
• MPN: M8-516RX

Technical Specifications

• Conductor Size: 8 AWG
• Tongue Type: Ring
• Stud Size: 5/16 inch
• Voltage Rating: 600/1000 VAC
• Temperature Rating: 347 degrees Fahrenheit
• Color: Red
• Length: 1.06 inches
• Barrel Size: 0.175 inches ID x 0.31 inches L
