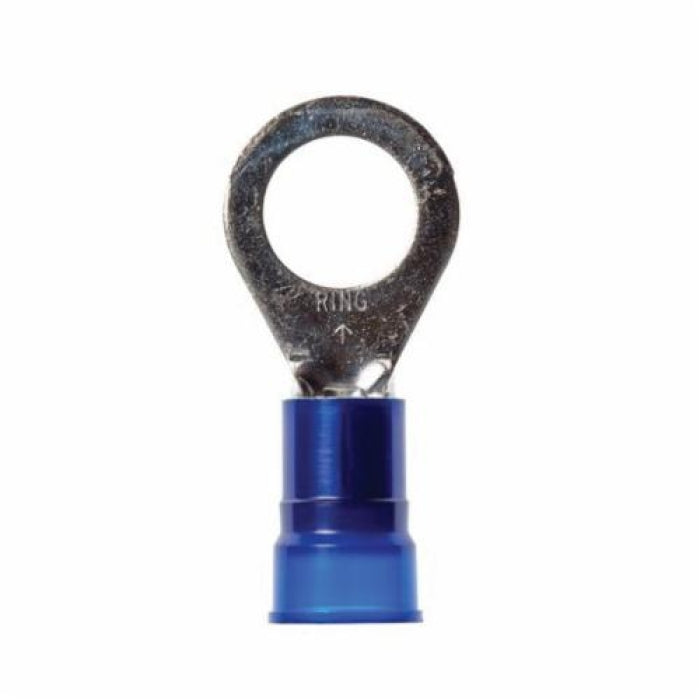

3M M6-14R/SX Ring Terminal 6 AWG

Product Description

The 3M M6-14R/SX is a ring terminal designed for a six AWG conductor. It features a brazed barrel with an inner diameter of one quarter inch. At one point fourteen inches in length, this terminal assures reliable performance in electrical connections. The terminal is made from electrolytic copper with a blue finish for identification.

• Standard ring tongue style
• Non-insulated with a brazed barrel
• Suitable for use with a quarter inch stud

Product Highlights

This terminal ensures a secure connection in various applications such as building fixtures and wiring. It is easy to install, supporting efficient electrical work.

Product Information

Standard Information

• Type: Non-Insulated Standard
• Brand: 3M

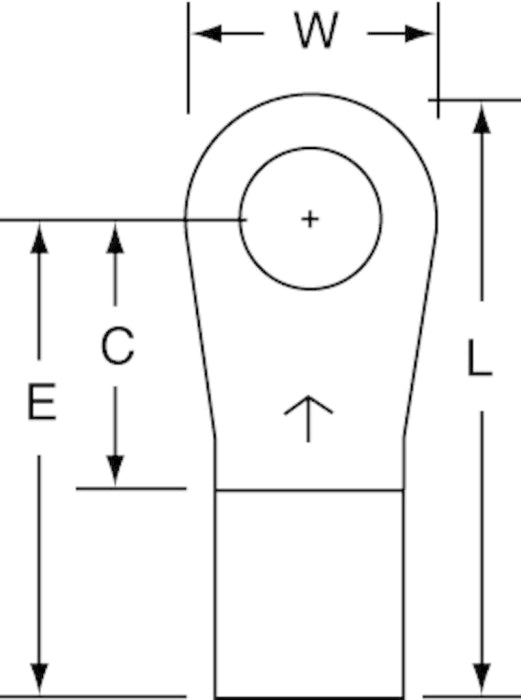

Technical Specifications

• Length: 1.14 inches
• Stud Size: 1/4 inch
• Clearance: 0.52 inches
• Tongue Size: 0.47 inches W x 0.05 inches T
• Voltage Rating: 600/1000 VAC
• Temperature Rating: 347 degrees F
• Conductor Size: 6 AWG
• Material: Copper
