Product Description

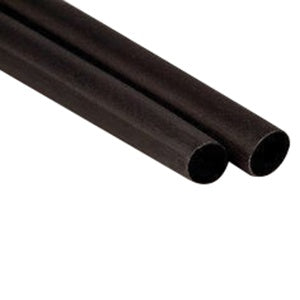

The 3M ITCSN-1100-9IN-BLACK is a heat shrink cable sleeve designed for safe insulation of electrical conductors. Measuring one point one inches by nine inches, this sleeve is made from adhesive-lined polyolefin. It accommodates conductor sizes from two to four-aught American Wire Gauge (AWG) and is rated for use in applications up to six hundred volts. The sleeve has a three to one shrink ratio, allowing it to expand while still providing effective insulation.
- Rated for 600 volts
- Temperature range from -55 to 100 degrees Celsius
- UL Listed and RoHS compliant
Product Highlights
This sleeve ensures reliable electrical connections and protects against abrasion, chemicals, and environmental factors.
Product Information
Standard Information
-
Brand: 3M
-
MPN: ITCSN-1100-9IN-BLACK
Technical Specifications
-
Conductor Size: 2-4/0 AWG
-
Shrink Ratio: 3:1
-
Tensile Strength: 16 MPa
-
Dielectric Strength: 500 Volt/mil
-
Volume Resistivity: 1 x 10^14 Ohm-cm
-
Water Absorption: 0.05%
-
Heat Aging: 375% elongation (7 days at 175 degrees Celsius)
-
Heat Shock: No Cracking or Dripping (4 hours at 491 degrees Fahrenheit)
