3M ITCSN-0800-9-BOX Heat Shrink Heavy-Wall Cable Sleeve 9 x 0.8 in Box of 25

3M
Brand: 3M
SKU: ITCSN-0800-9-BOX
Availability: In Stock

Ships same day if ordered by 12 pm
$22.39
$22.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

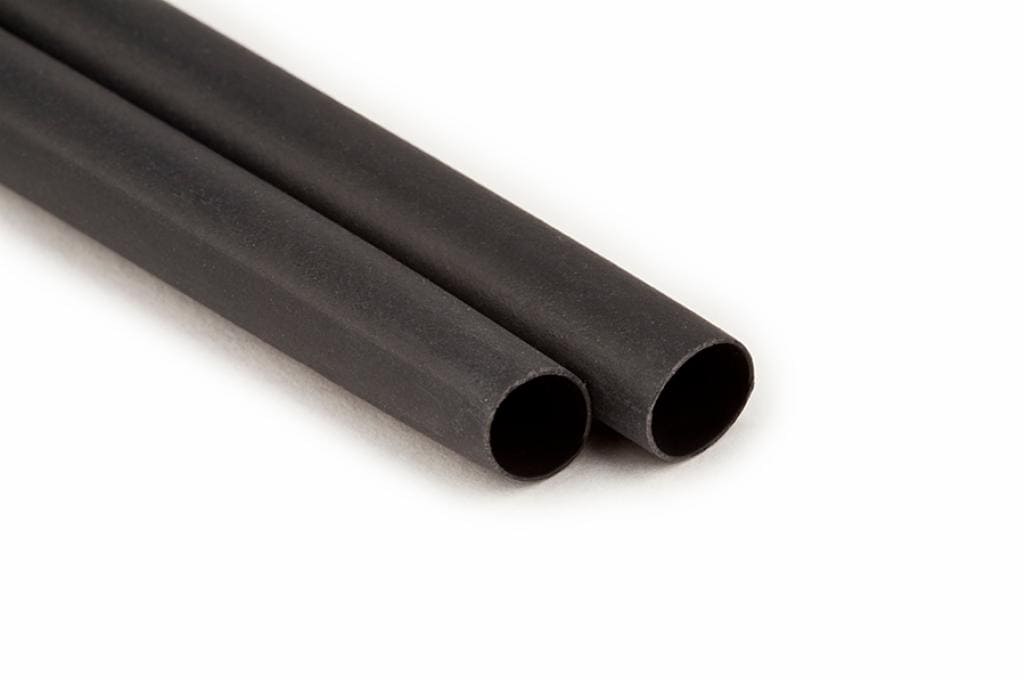

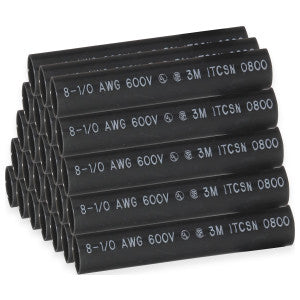

3M ITCSN-0800-9-BOX is a heat-shrink heavy-wall cable sleeve that provides mechanical and environmental protection for electrical splices, connections, and terminations. The adhesive-lined polyolefin sleeve has a 0.8 in inner diameter and 9 in length, supplied in a box of 25 with a 3:1 shrink ratio. It is rated for 1 kV, resists moisture, abrasion, chemicals and corrosion, and withstands -67 to 230 F (-55 to 110 C).

  • Adhesive-lined heavy-wall polyolefin construction for mechanical and environmental protection
  • 3:1 shrink ratio; 0.8 in inner diameter (before shrink); 9 in length; supplied as box of 25
  • Rated for 1 kV with dielectric strength 500 V/mil; suitable for direct-buried and submersible repairs

Product Highlights

Heavy-wall, adhesive-lined polyolefin sleeve; 0.8 in ID, 9 in length; 3:1 shrink; box of 25; 1 kV rated; UL, CSA and RoHS compliant

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: ITCSN-0800-9-BOX
  • Country of Origin: United States
Technical Specifications
Manufacturer
3M
Brand
3M
Manufacturer Part Number
ITCSN-0800-9-BOX
Series
ITCSN
Product Name
Heat shrink heavy-wall cable sleeve
Material
Adhesive-lined polyolefin
Shrink Ratio
3:1
Inner Diameter (Before Shrink)
0.8 in (20.32 mm)
Recovered Diameter (After Shrink)
0.22 in (5.6 mm)
Overall Length
9 in (228.6 mm)
Packaging
Box of 25
AWG Range
8 to 1/0 AWG
Rated Voltage
1 kV
Dielectric Strength
500 V/mil
Operating Temperature Range
-67 to 230 F (-55 to 110 C)
Minimum Shrink Temperature
121 C (approx. 250 F)
Certifications
UL Listed; CSA Certified; RoHS 2011/65/EU Compliant
ECCN
EAR99
Country of Origin
United States
UNSPSC
39121723
Unit Weight
2.050 lbs
