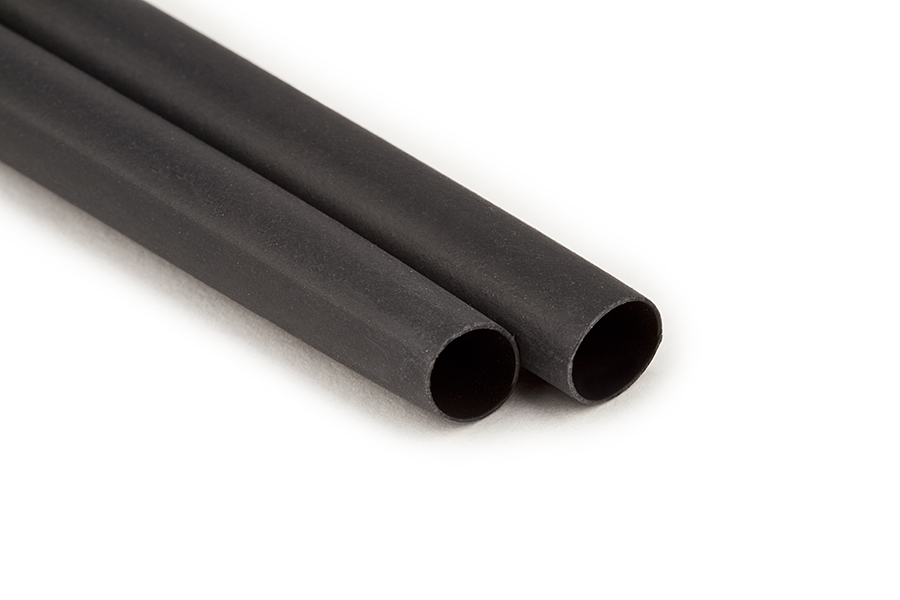

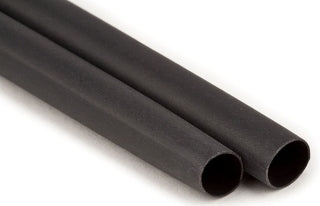

3M IT1.500BK48S Heat Shrink Heavy Wall Cable Sleeves

Product Description

The 3M heat shrink heavy wall cable sleeve, MPN IT1.500BK48S, is designed for effective electrical insulation and protection. With a three to one shrink ratio, it provides a secure fit for various wire sizes. This sleeve is suitable for applications rated up to one kilovolt.

• Provides excellent abrasion, corrosion, and chemical resistance
• Ideal for insulating secondary splices and submersible repairs
• Made of durable black cross-linked polyolefin material

Product Highlights

This heavy-duty sleeve is engineered to withstand harsh conditions and offers reliable performance for electrical splices, connections, and terminations.

Product Information

Standard Information

• Brand: 3M
• MPN: IT1.500BK48S

Technical Specifications

• Type: Heavy Wall
• Color: Black
• Length: 48 inches
• Voltage Rating: 600 VAC
• Material: Polyolefin
• Wire Size: 000 AWG - 400 kcmil
• Shrink Ratio: 3:1
• Overall Length: 48 inches
• Temperature Rating: -67 to 230 degrees F
