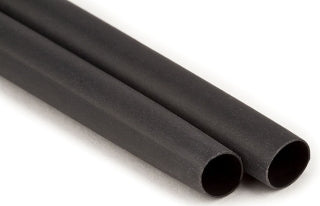

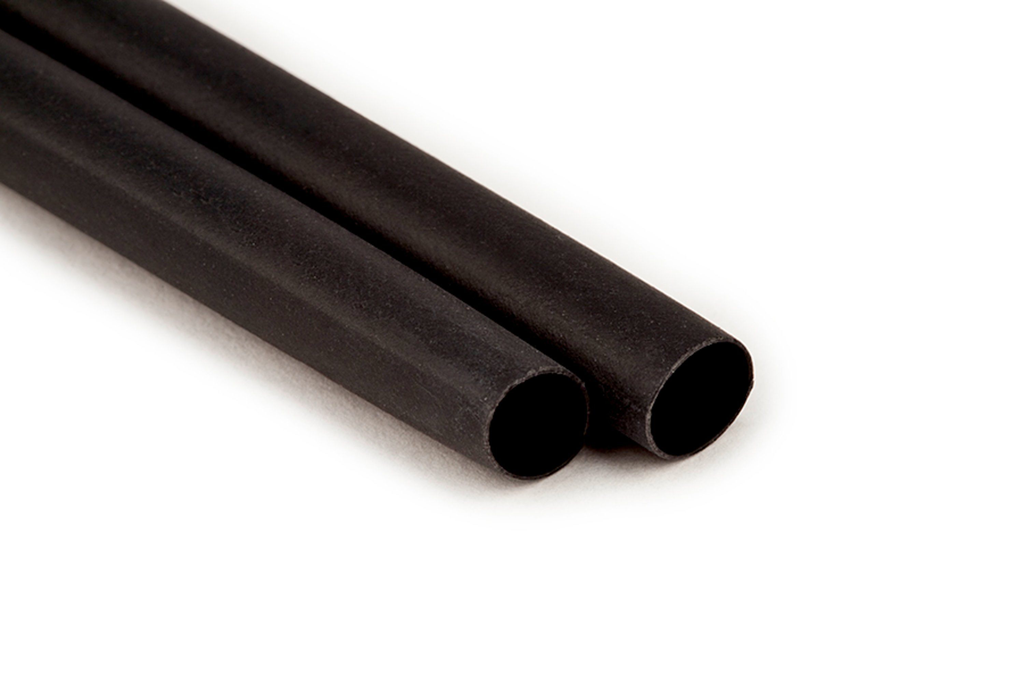

3M IT1.100BK48S Heat Shrink Heavy Wall Cable Sleeve 600 Volt (48 Inch) 7000132380

Product Description

3M, IT1.100BK48S, Heat Shrink Heavy Wall Cable Sleeve provides effective insulation for electrical splices and connections. This heavy wall sleeve is designed with a three to one shrink ratio suitable for one kilovolt rated applications. Made from cross-linked polyolefin, it offers moisture sealing properties and robust protection against abrasion, corrosion, and chemicals.

• Heavy wall design for maximum protection
• Resilient in various environmental conditions
• Easy installation due to fast shrinking capability

Product Highlights

Ideal for insulating secondary splices. Suitable for direct buried, submersible, and dig-in repairs.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: IT1.100BK48S

Technical Specifications

• Material: Polyolefin
• Color: Black
• Length: 48 inches
• Voltage Rating: 600 volts
• Shrink Ratio: 3:1
• Temperature Rating: -67 to 230 degrees F
• Tensile Strength: 2400 lb
• Dielectric Strength: 500 V/mil
