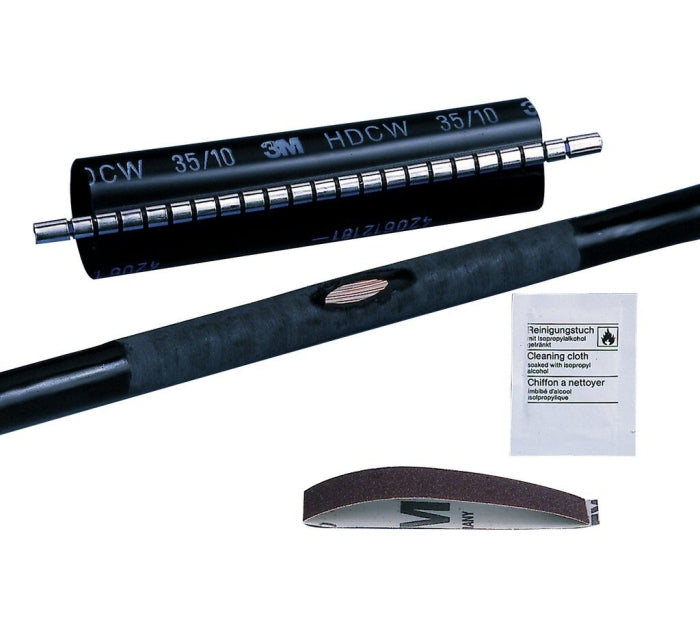

3M HDCW-80/25-1000 Heat Shrink Wrap Sleeve

Product Description

3M HDCW-80/25-1000 is a heat shrink wrap sleeve designed for repairing damaged cable jacketing. This wraparound sleeve serves as insulation for cables and splices with a voltage rating of up to 1000 V and can be utilized as jacket repair material on cables rated for up to 35 kV. Made from cross-linked polyolefin, this sleeve features adhesive lining for moisture seal protection and excellent mechanical stress resistance.

The heat shrink sleeve's hot melt adhesive creates a secure, moisture-resistant seal ideal for harsh environmental conditions. Its design allows for easy installation in tight spaces using standard heating tools.

• Wraparound design for quick installation
• Effective for insulation and repair on low voltage cables
• Available for conductor sizes from 500 to 1000 kcmil

Product Highlights

This heat shrink wrap sleeve offers reliable protection and is suitable for various applications including electrical insulation and cable repairs.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: 3M

Technical Specifications

• Catalog Number: HDCW-80/25-1000
• Length: 39.4 inches
• Expanded Insulation Diameter: 3.94 inches
• Recovered Insulation Diameter: 0.91 inches
• Recovered Wall Thickness: 2 mm
• Conductor Size: 500 to 1000 kcmil
• Voltage Rating: 1000 V
• Color: Black
