3M HDCW-35/10-250 hdcw wraparound heat shrink cable repair sleeve 15 - 35 kV (pack of 5)

Product Description

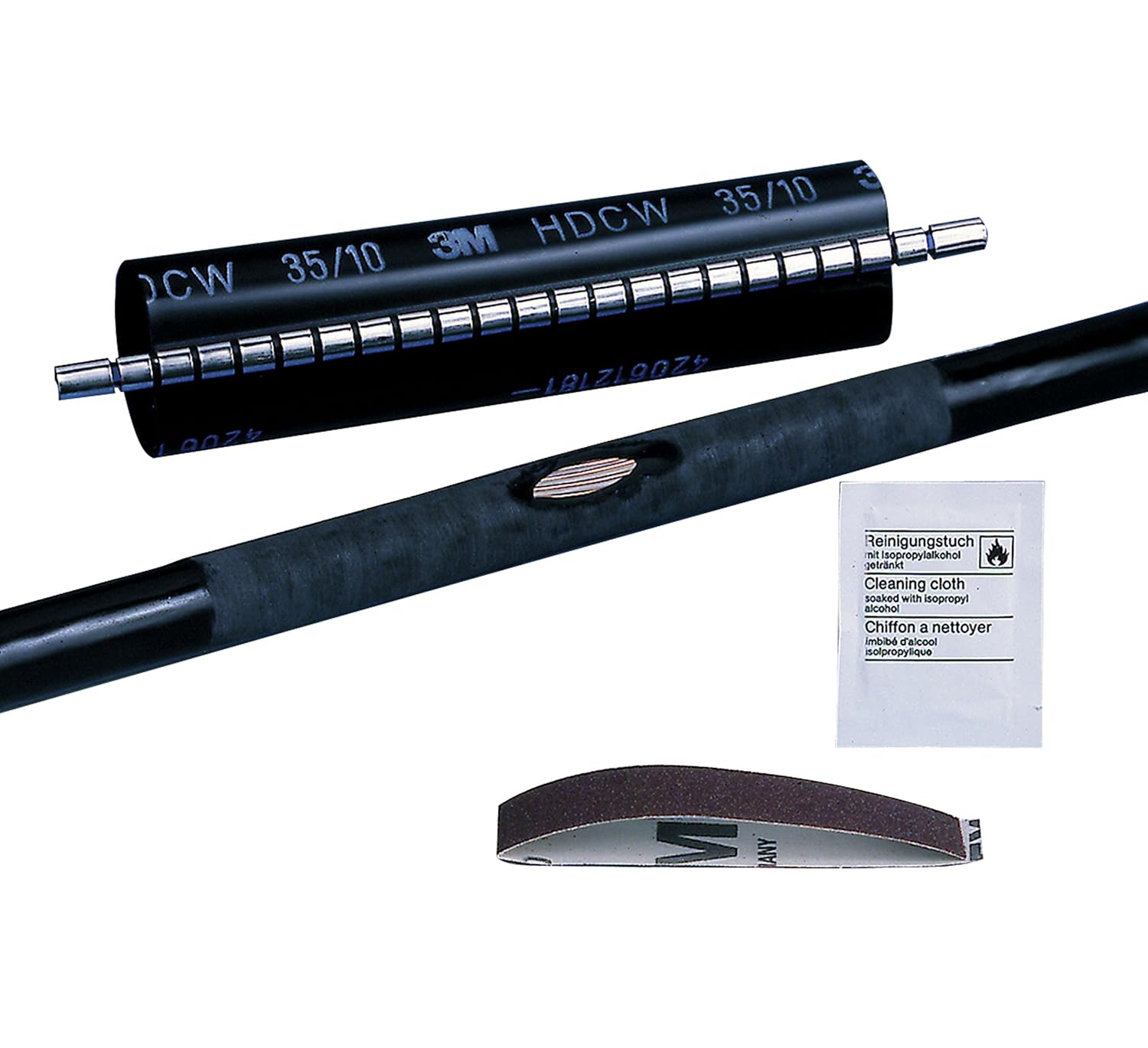

The 3M HDCW-35/10-250 Wraparound Heat Shrink Cable Repair Sleeve has a voltage rating of 15 - 35 kV and comes in a pack of 5. Designed to repair damaged cable sheaths, it is also suitable for use with cable joints or as additional corrosion protection on undamaged cables. The wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV.

• Wraparound design
• Heat shrinkable
• Suitable for cable repair
• Voltage rating: 15 - 35 kV

Product Highlights

The 3M HDCW-35/10-250 heat shrink cable repair sleeve offers excellent protection against mechanical stress and forms a durable, moisture resistant seal.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: HDCW-35/10-250
• Country of Origin: Germany

Technical Specifications

• Brand: 3M
• MPN: HDCW-35/10-250
• Voltage: 15 - 35 kV
• Type: Wraparound Heat Shrink Cable Repair Sleeve
• Length: 9.8 Inch
• Material: Polyolefin
• Applications: repair damaged cable sheaths
• Conductor Size: 1 AWG
• Overall Length: 9.8 in
• Series: HDCW
• Standards/Approvals: ARRA Compliant|RoHS Compliant|CSA Approved
• Application: For repairing damaged cable sheaths
• Rated Voltage: 1 kV to 35 kV
• Product Type: Heat Shrink Wrap Sleeve
• Compatible Wire Sizes: 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 4 AWG; 6 AWG; 8 AWG
• Maximum Cable Diameter: 35 mm
• Minimum Cable Diameter: 10 mm
• Resistant Properties: Moisture-Resistant
• Standards Met: ANSI C119.1
• Adhesive Material: Hot Melt Adhesive
• Inner Diameter Before Shrinking: 1.97 in
• Lining: Adhesive-Lined
