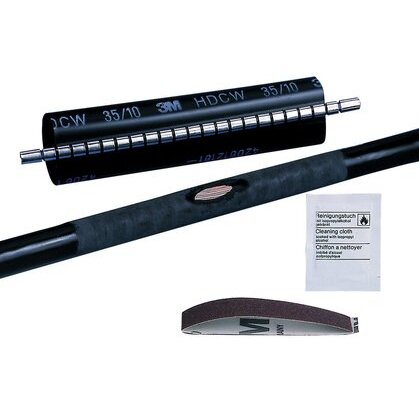

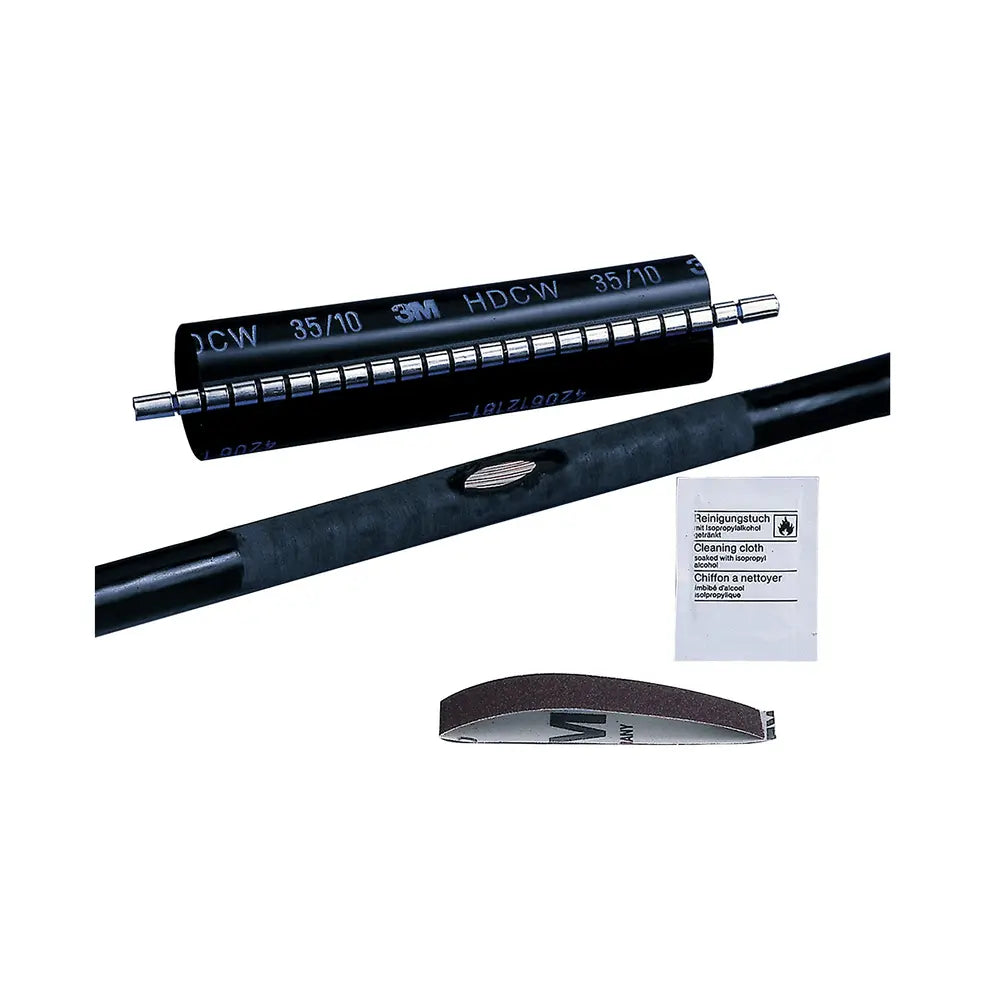

3M HDCW-35/10-1200 Polyolefin Heat Shrink Wrap Sleeve 1200 mm Length

Product Description

The 3M HDCW-35/10-1200 polyolefin heat shrink wrap sleeve features a 1200 mm length, 35 mm max diameter and 10 mm min diameter, and is rated for 1 kV, 15 kV, 28 kV, 35 kV, and 8 kV. This wraparound sleeve is designed to repair damaged cable jacketing and can be used as insulation material on cables and splices up to 1000V and as jacket repair material on cables up to 35 kV.

• Polyolefin heat shrink wrap sleeve
• 1200 mm Length
• 35 mm Max Diameter
• 10 mm Min Diameter

Product Highlights

This heat shrink cable repair sleeve offers protection against mechanical stress and corrosion on undamaged cables. It is made of adhesive-lined, cross-linked polyolefin.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: HDCW-35/10-1200
• Country of Origin: US

Technical Specifications

• Length: 1200 mm
• Max Diameter: 35 mm
• Min Diameter: 10 mm
• Voltage Rate: 1 kV, 15 kV, 28 kV, 35 kV, 8 kV
• Type: Heat Shrink
• Color: Black
• Diameter: 0.32 Inches
• Flammability: Not Flame Retardant
• Voltage Rating: 1000 VAC
• Minimum Shrink Temperature: 257°F
• Continuous Operating Temperature: -40°C to 100 °C
• Material: Polyolefin
• Brand: 3M
• Overall Length: 47.2 in
• Applications: repair damaged cable sheaths
• Manufacturer: 3M Electrical Products
• Catalog Number: HDCW-35/10-1200
• Standard: ANSI C119.1
• Item Type: Wraparound Heat Shrink Cable Repair Sleeve
• Adhesive Lined: Yes
• Adhesive Material: Hot Melt
• Application Specifications: Qualified to ANSI C119.1
• Cable Type: Any type of cable
• Chemical Resistant: Yes
• Elongation: 3 %
• Flame Retardant: No
• Halogen Free: Yes
• Heat Shrink Type: Heavy-Duty Heat Shrink Tubing, Heat Shrink Molded Shapes
• Inner Diameter After Shrink (Imperial): 0.3 in
• Inner Diameter After Shrink (Metric): 8 mm
• Inner Diameter Before Shrink (Imperial): 1.97 in
• Inner Diameter Before Shrink (Metric): 50 mm
• Jacket Repair Range: 0.39 to 1.38 Inch
• Maximum Voltage Rating: 1 kV to 35 kV
• Minimum Expanded Tubing I. D.: 1.69 in
• Minimum Shrink Temperature (Celsius): 125 ℃
• Operating Temperature Range (Celsius): -40 °C to 100 °C
• Product Color: Black
• Product Form: Sleeve-roll
• Product Type: Splice
• Sleeve Length: 47.2 in
• Splice Configuration: Heat Shrink Cable Repair Wrap Sleeve (HDCW)
• Splice Type: Heat Shrink
• UV Resistant: Yes
• Manufacturer Part Number: 7000138423
• Series: HDCW
• Standards/Approvals: RoHS Compliant|ANSI C119.1|OSHA 29 CFR 1910.1200|RoHS 2011/65/EU
• Maximum Cable Diameter: 35 mm
• Minimum Cable Diameter: 10 mm
• Resistant Properties: Moisture-Resistant
• Standards Met: ANSI C119.1
• Lining: Adhesive-Lined
• Allowable Gauge Range: 8 - 2/0
