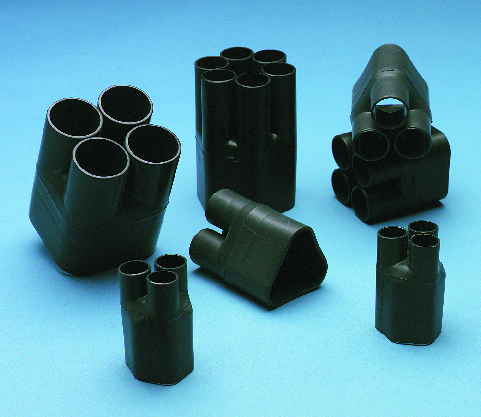

3M HDBB-345-1-250 Heat Shrink Heavy Duty Breakout Boots

Product Description

3M HDBB-345-1-250 Heat Shrinkable Cable Breakout Boot is designed for reliable strain relief and protection for breakouts in multi-conductor armored or sheathed cables. This product is made from semi-rigid, flame-retardant polyolefin and meets various industry standards. It ensures excellent insulation and void-free sealing, making it suitable for indoor and outdoor applications.

• Semi-rigid, flame-retardant polyolefin construction
• Ensures excellent insulation and void-free sealing of cable breakouts
• RoHS compliant, providing environmentally friendly choice

Product Highlights

This heat shrink boot provides maximum electrical and mechanical protection, featuring an internal adhesive coating for reliable environmental sealing.

Product Information

Standard Information

• Brand: 3M
• MPN: HDBB-345-1-250

Technical Specifications

• Type: Breakout Boot
• Color: Black
• Voltage Rating: 25 kV
• Material: Polyolefin
• Conductor Size: 1/0 AWG
• Number of Legs: 3
• Cable Entry Inner Diameter: 4.9 to 2.32 inches
• Conductor Leg Inner Diameter: 2 to 1 inch
