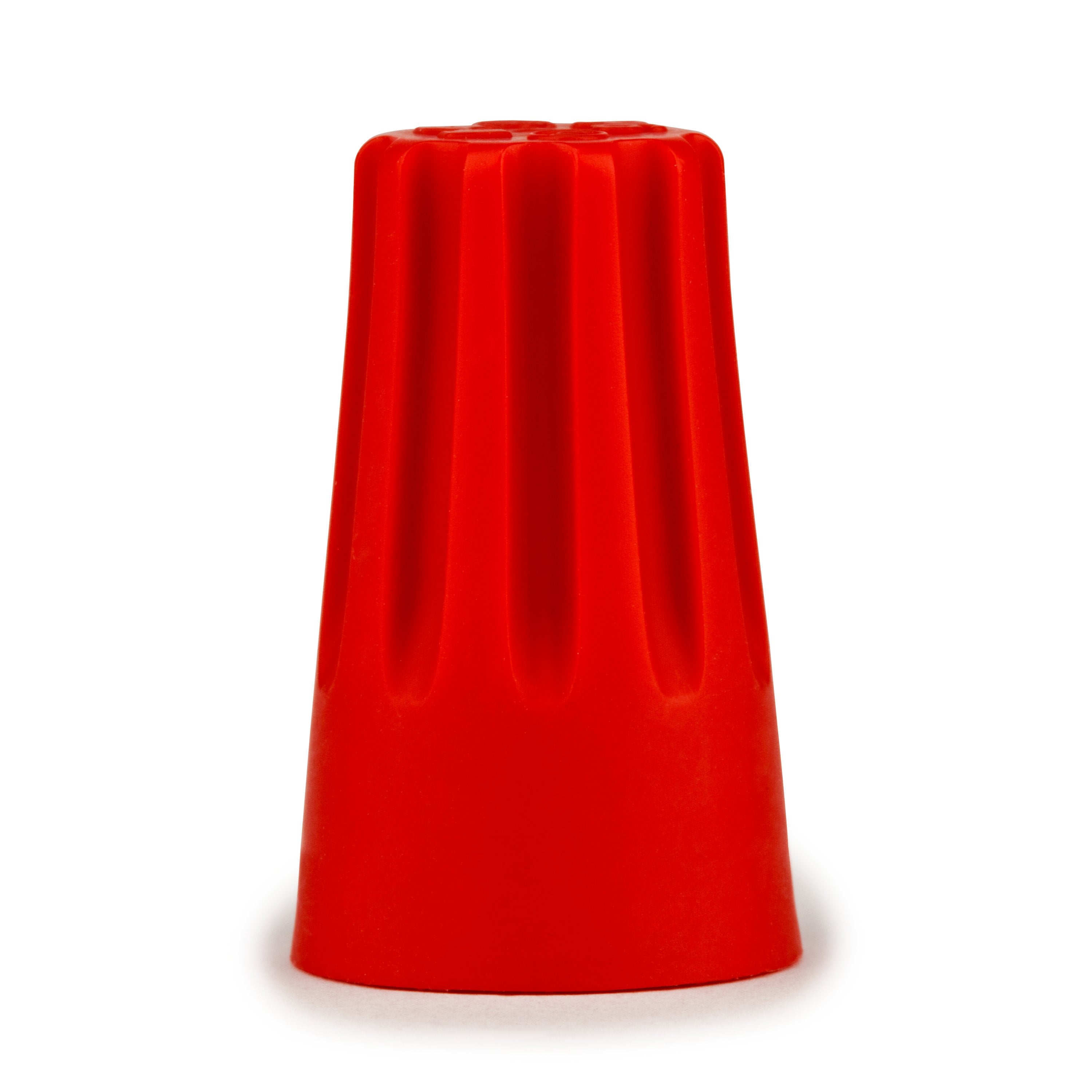

3M H-35-POUCH Highland Wire Connector 18-10 AWG (100 per Pouch)

Product Description

The 3M H-35-POUCH Highland Wire Connectors make it easy to match the right connector to the wire size for connecting and insulating wire connections in a pigtail application. The shells are designed to withstand temperatures up to 221°F (105°C). These wire connectors are UL Listed and work with solid or stranded copper wire. Rated to 600V maximum in building wire; 1000V maximum in signs or lighting fixtures.

• Used for connecting and insulating wire connections in a pigtail application
• Suitable for select 3M™ Peformance Plus™ Wire Connectors and 3M™ Secure Grip Wire Connectors
• Available in hand driver or power driver options

Product Highlights

Highland wire connectors are UL Listed and work with either solid or stranded copper wire. Available in hand driver or power driver options.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: H-35-POUCH

Technical Specifications

• Manufacturer: 3M
• Brands: Highland™
• Conductor Sizes (Imperial): 18 -10 AWG
• Connection Type: Wire
• Connector Style: Twist On
• Flame Retardant: No
• Maximum Conductor Size (Imperial): 10 AWG
• Maximum Conductor Size (Metric): 6 mm²
• Maximum Operating Temperature (Celsius): 105 °C
• Maximum Operating Temperature (Fahrenheit): 221 °F
• Maximum Recommended Voltage Rating: 600 V
• Minimum Conductor Size (Imperial): 18 AWG
• Minimum Conductor Size (Metric): 1 mm²
• Product Color: Red
• Product Type: Connector
• Voltage Rating: 600 V
• Wire Connector Type: Twist-on Wire Connectors
