3M FV14-6Q highland 16-14 AWG #6 stud 25/bag

Product Description

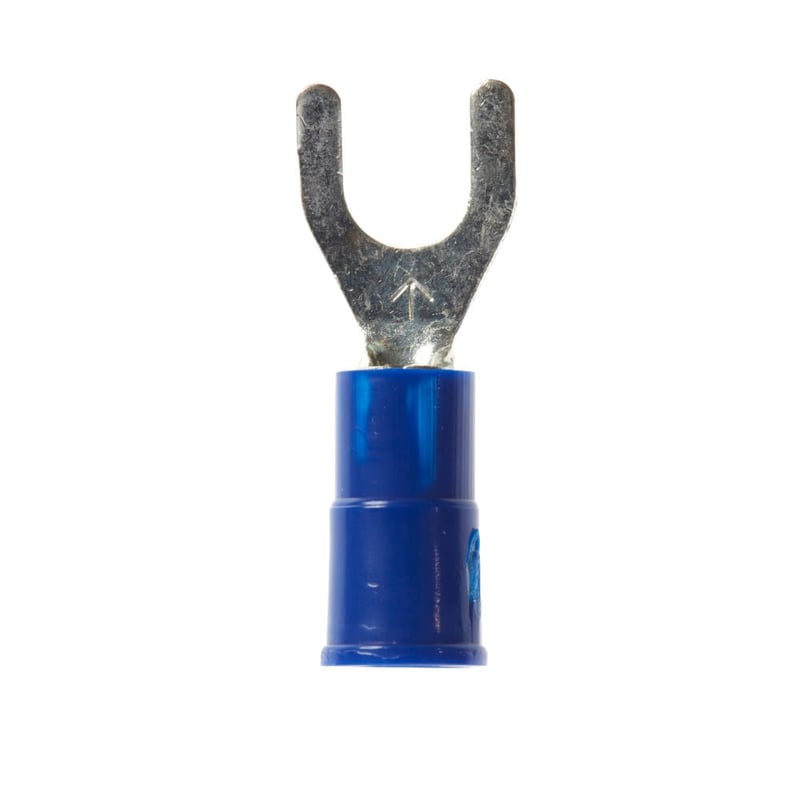

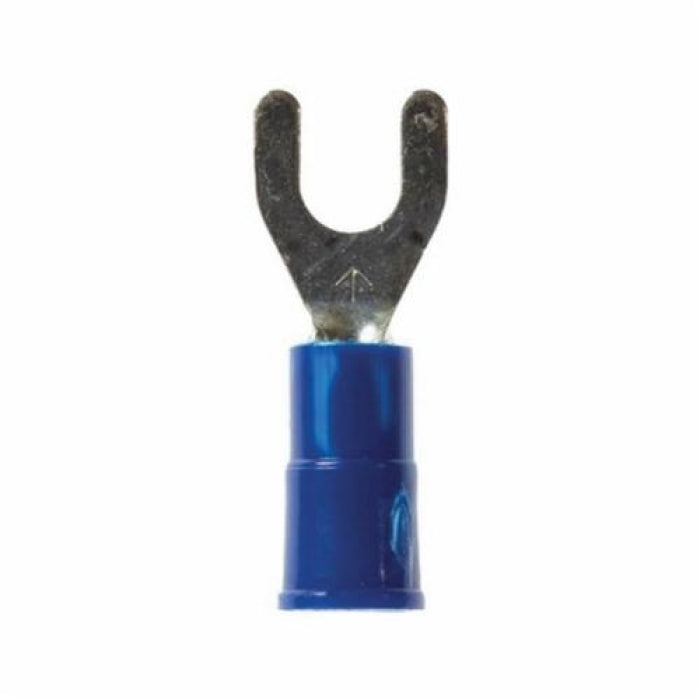

The 3M FV14-6Q Highland Insulated Standard Fork Terminal is a lug connection terminal designed for 16 to 14 AWG stranded copper conductors with a #6 stud. This terminal features a 0.9 inch length, a butted seam barrel, and a fork tongue. It is rated for 600 to 1000 VAC and operates within a temperature range of -40 to 221 degrees F. Constructed from electrolytic copper with vinyl insulation and a tin-plated finish, it ensures reliable electrical connections.

• Vinyl insulated, butted seam barrel provides a secure fit and reliable performance.
• Funnel-designed PVC sleeve facilitates easy wire insertion.
• Wider tongue design is suitable for free-standing studs.

Product Highlights

Insulated fork terminal for 16-14 AWG stranded copper conductors with a #6 stud, featuring a wider tongue design.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: FV14-6Q
• Country of Origin: United States

Technical Specifications

• Conductor AWG: 16 to 14 AWG
• Conductor Type: Stranded Copper
• Stud Size: #6
• Overall Length: 0.9 in
• Barrel Type: Butted Seam
• Barrel Dimensions: 0.09 in ID x 0.25 in L
• Terminal Type: Fork Tongue
• Tongue Dimensions: 0.34 in W x 0.03 in THK
• Voltage Rating: 600 to 1000 VAC
• Max Insulation Diameter: 0.17 in
• Clearance: 0.29 in
• Operating Temperature: -40 to 221 deg F
• Material: Electrolytic Copper/Vinyl
• Plating: Tin Plated
• Certifications: UL 486A, CSA C22.2
• Color: Blue
• Insulation Type: Vinyl
• Connection Type: Crimp
• Angle: straight
